The operational reality of processing post-consumer recycled (PCR) materials is harsh. Bales arriving at facilities are rarely pure. Incoming streams are inherently compromised by unpredictable consumer behavior, inadequate sorting, and the fundamental fact that most post-consumer plastic was never designed with end-of-life circularity in mind. Contamination—whether food residue, mold, glass, metals, or mixed polymers—directly threatens plant efficiency. It causes severe equipment wear, excessive downtime, and degraded final pellet quality that fails to meet strict buyer specifications. Operators face the constant challenge of turning highly variable, dirty feedstock into a consistent, high-value product.

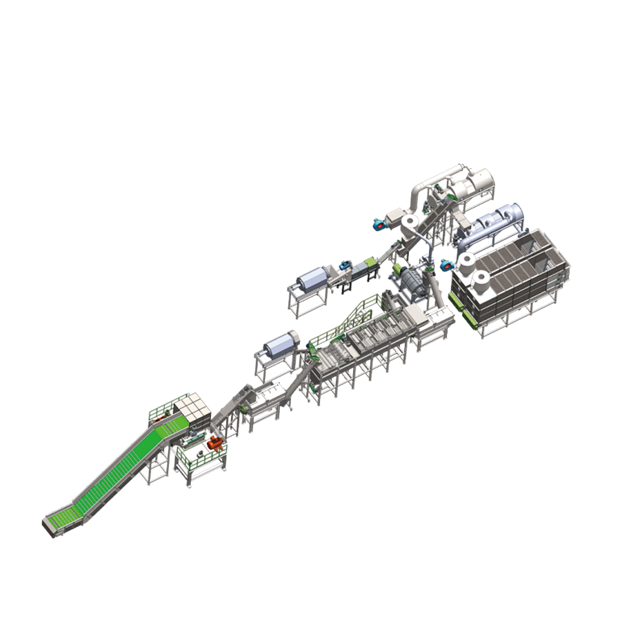

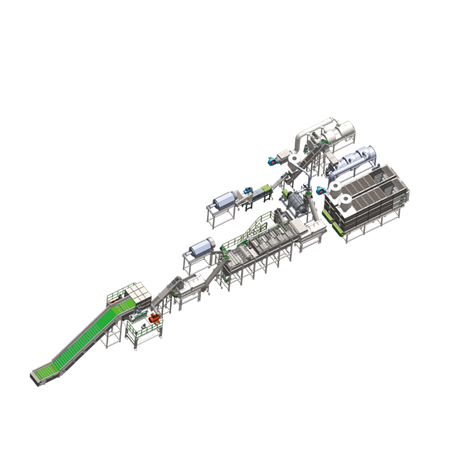

Achieving consistent, high-grade PCR from inconsistent feedstocks requires moving beyond basic wash systems. It demands a highly integrated, multi-stage processing architecture. This includes a precision-engineered plastic washing line manufacturer solution and an advanced plastic pelletizing system designed specifically to isolate, neutralize, and extract value from worst-case input scenarios. In this article, you will learn how a modern post consumer plastic recycling line effectively manages these complex contamination challenges.
Post-consumer plastic is structurally difficult to recycle due to variations in polymer sources, molecular weight distribution, and legacy additive packages. Products are manufactured with different stabilizers, colorants, and plasticizers that complicate the recycling process when mixed together. A single bale of curbside plastics might contain blow-molded high-density polyethylene (HDPE) milk jugs alongside injection-molded polypropylene (PP) containers. While both are polyolefins, their melt flow indices (MFI) and thermal degradation points differ wildly. If processed together without proper separation, the resulting polymer blend will suffer from severe mechanical weaknesses, rendering it useless for structural or packaging applications.
Real-world PCR inconsistency is a major hurdle. Geographic origin, collection methods, and seasonal changes create highly volatile input quality. A bale sourced from a rural municipal program utilizing single-stream collection will inevitably contain higher levels of paper, glass, and aluminum cross-contamination compared to a dual-stream collection system in a dense urban center. Furthermore, seasonal variations—such as increased consumption of bottled water during summer months—drastically alter the ratio of PET to other polymers in the incoming feedstock. Plant operators cannot rely on static machine settings; they need dynamic, adaptable processing lines capable of handling sudden shifts in material composition.
Organic waste, such as food, liquids, and oils, causes rapid bacterial growth, mold, and severe odor issues. When dairy residue is left inside an HDPE milk jug, it ferments and bakes into the polymer matrix during the summer heat. If these organics are not thoroughly removed during the washing phase, they carbonize under the high temperatures of extrusion. This carbonization leads to black specks in the final pellet, off-gassing, and foul-smelling extrudate that fails quality control checks for food-grade or high-end cosmetic packaging applications.
Inorganic debris poses serious mechanical risks to the entire processing line. Glass shards, rocks, ferrous metals, and non-ferrous metals easily bypass primary sorting at material recovery facilities (MRFs). When these hard materials enter the processing stream, they cause catastrophic damage. A single hardened steel bolt hidden inside a crushed plastic container can shatter the rotating knives of a granulator or gouge the flights of an extruder screw. This results in expensive emergency repairs, replacement of consumable wear parts, and extended unplanned downtime.
| Contaminant Type | Common Sources | Impact on Machinery | Impact on Final Polymer Quality |
|---|---|---|---|
| Organic Residue | Food, dairy, beverages, cooking oils | Clogs screens, fouls wash water, creates sludge | Odor, discoloration, black specks, off-gassing during extrusion |
| Inorganic Debris | Glass, rocks, sand, dirt | Dulls granulator blades, accelerates wear on friction washers | Weakens tensile strength, creates voids in molded products |
| Ferrous Metals | Screws, bolts, wire, tin cans | Catastrophic damage to shredders and extruder screws | Complete batch rejection, severe structural failure |
| Non-Ferrous Metals | Aluminum foil, pull tabs, brass fittings | Premature wear on melt filters, blocks die plates | Surface defects, reduced impact resistance |
Separating visually identical but chemically distinct polymers is incredibly difficult. For example, PET bottles mixed with PVC or multi-layer barrier films often look the same on a sorting belt but react entirely differently during processing. PVC has a much lower melting point than PET. If even a fraction of a percent of PVC makes it into a PET extrusion line, the PVC will burn and release hydrochloric acid gas. This not only degrades the surrounding PET, turning it yellow and brittle, but also severely corrodes the internal steel components of the extruder.
Even trace amounts of incompatible polymers alter the melt flow index. This cross-contamination causes structural delamination and ruins the physical properties of the final recycled product. When processing PP, the accidental inclusion of polyethylene (PE) can lead to phase separation. The two polymers do not mix at a molecular level, resulting in a final molded product that peels apart in layers under stress. Managing this requires aggressive sorting technologies and precise density separation techniques.
Automated bale breakers and trommel screens are necessary to remove loose dirt, heavy debris, and oversized non-plastic items before they enter the primary size-reduction equipment. When a highly compacted bale weighing over 500 kilograms is introduced to the line, the bale breaker slowly tears it apart without shredding the individual items. This allows trapped rocks, sand, and loose glass to fall through the heavy-duty screens of the trommel. This initial step protects downstream machinery from immediate damage and reduces the abrasive wear on the primary shredder.
Secondary, in-line sorting is a critical step. Processors must sort again even when purchasing pre-sorted municipal bales to catch lingering contaminants. Integrating magnetic separators and eddy current rotors ensures early-stage metal extraction. Overband magnets pull ferrous metals from the conveyor belt, while eddy current separators repel non-ferrous metals like aluminum into a separate chute. Ballistic separators are also deployed at this stage to separate 3D rolling items (like bottles) from 2D flexible items (like films and paper), ensuring that the granulators receive a consistent feed of material.
The plastic washing line is where the most intensive decontamination occurs. Once the plastic is granulated into uniform flakes, it enters a series of aggressive washing stages designed to strip away every layer of contamination.
Transitioning from clean, dry flake to a usable, high-value pellet requires an advanced plastic pelletizing system. Even the most aggressive washing lines leave behind microscopic impurities. As the plastic flake is melted inside the extruder barrel, it must pass through continuous melt filtration systems. Dual-piston screen changers or continuous laser filters are utilized to capture sub-micron contaminants like paper fibers, aluminum foil fragments, and unmelted cross-contaminated polymers. Continuous filtration is vital because it allows the extruder to run without stopping to change clogged screens, maintaining steady head pressure and consistent output.
Vacuum degassing zones, utilizing single or double venting within the extruder barrel, are critical for final purification. As the polymer melts, any remaining moisture, volatile organic compounds (VOCs), and ink residues vaporize. High-powered vacuum pumps extract these gases directly from the melt. If this degassing step is skipped or underperforms, the trapped gases will create microscopic voids and bubbles inside the final pellet. This leads to structural weaknesses, poor tensile strength, and unacceptable visual defects when the pellets are eventually molded into new products.
Integrating NIR optical sorters provides a massive upgrade in material purity by identifying and ejecting off-color plastics and rogue polymer types at high speeds. NIR sensors analyze the light spectrum reflected off each piece of plastic on a high-speed conveyor belt. Within milliseconds, the system identifies the specific polymer signature and fires a precise jet of compressed air to eject unwanted materials. This automation significantly reduces reliance on manual labor and improves overall stream purity, allowing facilities to achieve 99.9% purity rates on clear PET or natural HDPE streams.
However, NIR has physical limitations. It struggles to detect black plastics because carbon black pigments absorb the near-infrared light, returning no usable signal to the sensor. To bridge this gap, secondary sensor technologies are required. High-resolution color cameras are used to sort by specific color profiles, while laser sorting technologies and X-ray fluorescence (XRF) can be deployed to detect specific elemental compositions, such as identifying flame retardants or heavy metals in electronic waste plastics.
Traditional mechanical separation differs significantly from emerging chemical recycling technologies like pyrolysis and depolymerization. Mechanical recycling maintains the polymer structure, melting and reforming the plastic. Chemical recycling breaks the plastic down to its basic monomers or hydrocarbon feedstocks, which can then be used to synthesize virgin-quality plastics. While chemical recycling can handle highly degraded or mixed plastics that mechanical recycling cannot, it requires massive energy inputs and highly controlled feedstocks.
A modern mechanical post consumer plastic recycling line acts as a critical pre-processing step for these advanced facilities. Chemical recycling reactors are highly sensitive to contamination. PVC, heavy metals, and excessive moisture can poison the catalysts used in depolymerization or create highly corrosive acids during pyrolysis. Therefore, advanced mechanical washing and sorting are mandatory to clean and prepare the feedstock to the exact chemical specifications required by advanced recycling facilities, ensuring process stability and preventing catastrophic reactor damage.
Wastewater management is a critical compliance and environmental factor for any facility processing post-consumer waste. Washing dirty plastics requires thousands of gallons of water per hour. Discharging this heavily contaminated water directly into municipal sewers is strictly prohibited in most jurisdictions due to high levels of suspended solids, chemical oxygen demand (COD), and biological oxygen demand (BOD). Integrated water treatment systems are necessary to continuously clean and recirculate wash water.
Implementing closed-loop resource management involves a multi-stage water treatment plant operating alongside the washing line. Coagulants and flocculants are added to the dirty water to bind suspended dirt and organics into larger particles. Dissolved air flotation (DAF) tanks then separate these solids, which are scraped off and sent to a sludge press for dewatering. The clarified water is then passed through physical sand filters and returned to the washing line. This reduces environmental impact and drastically lowers municipal water consumption, making the entire operation sustainable.
There is a strict inverse relationship between processing speed and output purity. Pushing a line beyond its rated capacity compromises decontamination efficiency. If a friction washer designed for 1,000 kg/hr is pushed to 1,500 kg/hr, the residence time of the plastic flake inside the washing chamber drops significantly. The mechanical action does not have enough time to scrub the labels and glue off the plastic. Similarly, overloading a sink-float tank creates turbulence, causing heavy contaminants to be carried over with the floating target plastics.
Determining the optimal operational speed requires analyzing the target market for the PCR. If the goal is producing utility-grade construction materials like plastic lumber, higher throughput with slightly lower purity might be acceptable. However, if the facility is targeting FDA-approved food-grade packaging, purity is paramount. The line must be run at a controlled, steady pace to ensure maximum residence time in the hot wash and absolute precision in the optical sorting and melt filtration stages.
The energy demands of thermal washing, mechanical drying, and extrusion are immense. Heating thousands of liters of water to 90°C for a hot wash system requires significant boiler capacity. Mechanical friction washers and heavy-duty extruders rely on massive electric motors. Operators must closely monitor the kilowatt-hours (kWh) required to produce a single kilogram of finished pellet. Optimizing motor efficiency with variable frequency drives (VFDs) and insulating hot wash tanks are critical steps in managing these energy loads.
Water consumption must also be tracked meticulously. Even with a closed-loop water treatment system, there is inevitable water loss through evaporation in the thermal dryers and moisture carried away in the sludge press. Tracking the liters of makeup water required per ton of processed plastic helps operators identify inefficiencies in the drying process or leaks in the filtration system. Managing these consumption metrics is vital for maintaining a lean, efficient manufacturing environment.
Avoid "off-the-shelf" solutions when dealing with post-consumer waste. A qualified plastic washing line manufacturer must engineer the line based on a physical audit and laboratory testing of the facility's historical bale composition. If your primary feedstock consists of agricultural films heavily contaminated with sand and soil, the manufacturer must specify heavy-duty pre-washing trommels and specialized wear-resistant steel for the shredders. If the feedstock is primarily PET bottles with aggressive pressure-sensitive adhesives, the focus must shift to extended-residence hot wash systems and high-concentration chemical dosing units. Customization ensures the equipment can handle specific local contamination profiles without constant breakdowns.
Vendor testing facilities are crucial for validating equipment capabilities. Buyers should demand a Factory Acceptance Test (FAT) using their own contaminated bales to verify throughput, water consumption, and output purity claims before finalizing the purchase. Shipping a representative sample of your worst-case feedstock to the manufacturer's test facility allows you to see exactly how their friction washers and sink-float tanks handle your specific contaminants. This proof of concept minimizes the risk of installing machinery that looks good on paper but fails in a real-world production environment.
Processing dirty plastics destroys machinery. Granulator knives dull, extruder screws wear down from abrasive sand, and screen changer plates become scored. Supply chain delays for proprietary replacement parts pose a massive operational risk. When evaluating a vendor, scrutinize their Service Level Agreement (SLA). Do they offer remote diagnostic capabilities to troubleshoot PLC faults instantly? Do they maintain a regional parts inventory, or will you wait weeks for a replacement rotor to ship overseas? Ensure the manufacturer uses standardized, easily accessible components (like standard SKF bearings or Siemens motors) rather than locked-down proprietary parts that hold your maintenance schedule hostage.
A: Recycling contamination includes organic waste like food and liquids, inorganic debris such as glass, rocks, and metals, and polymer cross-contamination where incompatible plastics are mixed. These contaminants cause severe mechanical damage to processing equipment, create mold and odor issues, and drastically degrade the structural integrity and visual quality of the final recycled polymer.
A: PCR feedstock inconsistency stems from varied municipal collection methods, such as single-stream versus dual-stream systems. Geographic differences, unpredictable consumer recycling behaviors, and seasonal changes in product consumption further contribute to highly volatile input quality, making it impossible to rely on static processing parameters.
A: A plastic washing line removes organics using a combination of high-speed mechanical friction washers, hot water tanks heated to 90°C, and chemical agents like caustic soda. This aggressive combination physically scrubs the flakes and chemically dissolves stubborn biological residues, oils, and adhesives.
A: Yes. It utilizes sink-float tanks for density-based separation, isolating floating polyolefins from sinking plastics. Additionally, NIR optical sorting identifies and ejects rogue polymers based on light reflection, while advanced melt filtration removes trace amounts of incompatible plastics during the final extrusion phase.
A: The plastic pelletizing system serves as the final purification stage. It utilizes continuous melt filtration to capture sub-micron impurities like paper fibers and aluminum foil. Vacuum degassing zones extract volatile organic compounds, moisture, and ink residues before the plastic is cut into final pellets.
A: Mechanical sorting and washing act as a mandatory pre-processing step for chemical recycling. By removing inorganic debris, heavy metals, and incompatible polymers like PVC, mechanical lines prevent catalyst poisoning and reactor corrosion, ensuring the feedstock meets the strict chemical specifications required for depolymerization.
A: Integrated water treatment systems clean and recirculate the massive volumes of wash water required to process dirty plastics. This closed-loop approach removes suspended solids and biological waste, ensuring regulatory compliance for discharge, reducing environmental impact, and significantly lowering municipal water consumption.
