Introduction

Choosing the wrong plastic shredder can reduce throughput and increase operating costs.

This plastic shredder selection guide explains how material type, capacity, shaft design, blades, and output size affect performance.

You will learn how to compare key specifications and select the right shredder for your recycling process.

What Is a Plastic Shredder Selection Guide?

A plastic shredder selection guide provides a structured buying process. It connects plastic properties with machine design and production requirements.

The goal is not finding the largest machine. The goal is finding the correct machine for your process.

What Does a Plastic Shredder Do?

A plastic shredder reduces large plastic waste into smaller pieces. This step makes materials easier to transport and process.

Typical feed materials include bottles, films, pipes, pallets, containers, and production scrap.

Shredded materials may continue into several processes:

• Washing

• Separation

• Secondary crushing

• Granulation

• Pelletizing

• Extrusion

In PP and PE washing lines, pre-shredding can stabilize feeding. One referenced recycling system uses double-shaft shredding before wet crushing. This arrangement helps process film, woven bags, and large bales.

Why Does Shredder Selection Matter?

Different plastics behave differently during shredding.

A thin PE film bends and wraps easily. A thick PVC pipe creates much higher cutting resistance.

Wrong machine selection may cause several problems:

• Unstable feeding

• Frequent material jams

• Excessive blade wear

• Low actual throughput

• Irregular particle size

• Higher energy use

• Increased maintenance time

The machine should therefore match actual material conditions. Buyers should avoid choosing from specifications alone.

Tip：Send the supplier representative material samples before confirming the shredder configuration.

Plastic Shredder vs. Plastic Crusher or Granulator

A shredder usually handles primary size reduction. It can accept larger and bulkier waste materials.

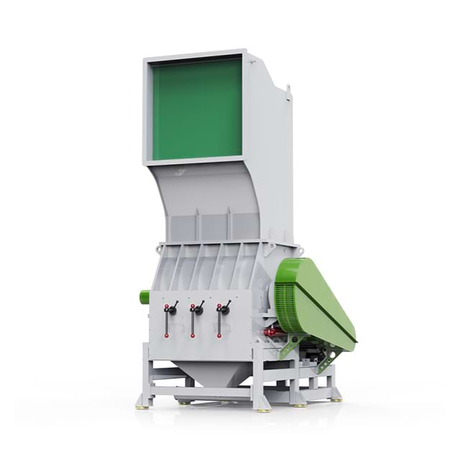

A crusher or granulator usually creates smaller particles. It often works after the primary shredding stage.

For example, large film bales may require pre-shredding first. Wet crushing can then create smaller flakes for washing.

The exact arrangement depends on the complete recycling line.

How to Choose the Right Plastic Shredder?

This is the most important part of any industrial plastic shredder buying guide.

Buyers should evaluate seven factors before comparing machine prices.

1. Identify the Plastic Material You Need to Shred

Start by defining your waste material precisely.

Common materials include:

• PET bottles

• HDPE containers

• PP products

• PE film

• PVC pipes

• Plastic pallets

• Woven bags

• Plastic purgings

Material type affects feeding and cutting behavior.

Rigid plastics usually need strong cutting force. Flexible materials may wrap around shafts or cutters.

Contaminated materials may also shorten blade life. Sand, metal, and hard impurities increase cutter wear.

Some commercial shredders support PET, PP, PE, PVC, PC, PS, and ABS. However, suitability still depends on product shape and thickness.

Always describe the material beyond its polymer name.

For example, “PP waste” is too general.

A better description is:

“PP injection-molding purgings, 15 kilograms each, clean material.”

That information supports better shredder selection.

2. Determine the Required Shredding Capacity

Next, calculate your real production demand.

Plastic shredder capacity selection should use actual operating conditions.

Consider these factors:

• Waste volume per day

• Working hours per shift

• Number of shifts

• Peak feeding rate

• Future production growth

• Planned downtime

Do not select capacity using average waste volume alone.

For example, a plant processes 8,000 kilograms daily. It operates eight production hours.

The simple requirement is about 1,000 kg/h.

However, feeding is rarely perfectly continuous. A higher design margin may therefore be reasonable.

Commercial equipment shows a very wide capacity range. One crusher listing gives 20–1,500 kg/h. Large industrial systems may reach several tonnes hourly.

Tip：Rated capacity should be verified using your material under realistic feeding conditions.

3. Consider Input Size and Feeding Method

Input dimensions strongly affect machine design.

Large pipes need enough hopper opening space. Pallets require a suitable cutting chamber.

Film bales create different feeding problems. Loose film may have very low bulk density.

Common feeding options include:

• Manual feeding

• Belt conveyors

• Hydraulic pushers

• Grab feeding

• Forklift feeding

• Pre-shredding systems

A hydraulic pusher can improve controlled feeding. It is often used in single-shaft systems.

Double-shaft systems may accept bulkier waste directly. However, hopper dimensions still require careful checking.

Measure the largest expected feed item. Do not use only average dimensions.

4. Define the Required Output Size

Output size should support the next processing stage.

Ask one simple question:

What happens after shredding?

If the material enters a crusher, coarse output may work. Washing systems may require smaller, controlled flakes.

Pelletizing may need further size reduction first.

Output size depends on several design factors:

• Cutter geometry

• Blade spacing

• Screen size

• Material properties

A shredder supplier specifically notes these variables affect final size.

Do not request “small pieces” in a quotation.

State a measurable target whenever possible.

5. Choose Between Single-Shaft, Double-Shaft, and Four-Shaft Shredders

The shaft design changes feeding and cutting behavior.

A single shaft vs double shaft shredder comparison should start from material behavior.

Single-shaft machines often provide more controlled output. A pusher moves material toward the rotor.

Double-shaft machines use opposing cutter shafts. They are useful for bulky or difficult waste.

Four-shaft machines perform repeated cutting. They can provide stronger size-control capability.

One industrial supplier describes four-shaft systems as using four coordinated shafts. Their stated purpose is higher throughput and finer sizing.

Machine names alone should not drive selection.

The actual cutter system matters more.

6. Compare Motor Power, Torque, and Rotor Speed

Motor kilowatts do not tell the full story.

Shredding performance depends on the complete drive system.

Review:

• Motor power

• Gearbox ratio

• Available torque

• Rotor speed

• Cutter geometry

• Material resistance

• Expected throughput

Low-speed, high-torque shredding suits many heavy-duty applications. It can also reduce dust and noise.

One referenced shredder highlights a high-torque, low-speed design. Its published models use different motor, reducer, speed, and torque combinations.

A larger motor cannot compensate for poor cutter design.

7. Evaluate Blade Design and Wear Resistance

Blades directly affect cutting performance and operating cost.

A proper plastic shredder blade selection should consider:

• Blade diameter

• Blade thickness

• Blade material

• Number of cutters

• Cutter profile

• Hardness

• Replacement method

Blade life also depends on contamination.

Clean bottles and abrasive waste create different wear rates.

Replaceable blades simplify maintenance. They may also reduce long-term spare-part costs.

One referenced machine uses replaceable cutters. Its specification varies blade dimensions and blade quantities by model.

Ask suppliers about sharpening limits and replacement intervals.

Which Plastic Shredder Type Is Best for Your Application?

No shredder type is best for every application.

The correct design depends on material form and output requirements.

Single-Shaft Plastic Shredder

Single-shaft shredders suit controlled size reduction.

They often process plastics, films, textiles, and paper.

A hydraulic pusher can maintain material contact. Screens can also improve final size control.

This design works well when consistent output matters.

Double-Shaft Plastic Shredder

Double-shaft shredders provide strong torque.

They work well with bulky and irregular materials.

Typical applications may include:

• Large pipes

• Thick plastic parts

• Pallets

• Containers

• Large production scrap

They usually prioritize robust primary shredding.

Very fine output may require another machine afterward.

Four-Shaft Plastic Shredder

Four-shaft shredders add repeated cutting stages.

They suit demanding industrial applications.

Their advantages can include:

• Higher processing intensity

• Better output control

• Stable treatment of difficult waste

One supplier lists four-shaft systems for tougher industrial waste and precise sizing.

However, greater complexity can increase investment and maintenance needs.

How to Match a Plastic Shredder to Different Waste Materials

Material form should guide the machine configuration.

PET Bottles and HDPE Containers

Bottles are relatively light and hollow.

A suitable hopper helps maintain stable feeding.

The required output depends on downstream washing equipment.

PET recycling often requires further crushing after shredding. HDPE containers may follow similar processing steps.

PE Film, Plastic Bags, and Woven Bags

Flexible plastics create special feeding challenges.

They have low bulk density. They may also wrap around rotating components.

Large film bales may need pre-shredding first.

A referenced PP/PE line uses double-shaft pre-shredding before wet crushing. This helps prevent tangling and stabilizes feeding.

PVC Pipes, Plastic Pallets, and Thick-Wall Products

Rigid waste creates higher cutting loads.

These materials may require:

• Larger cutting chambers

• Higher torque

• Stronger shafts

• Durable cutters

• Controlled feeding

Input dimensions are especially important for long pipes.

A machine may have sufficient power but inadequate feed opening.

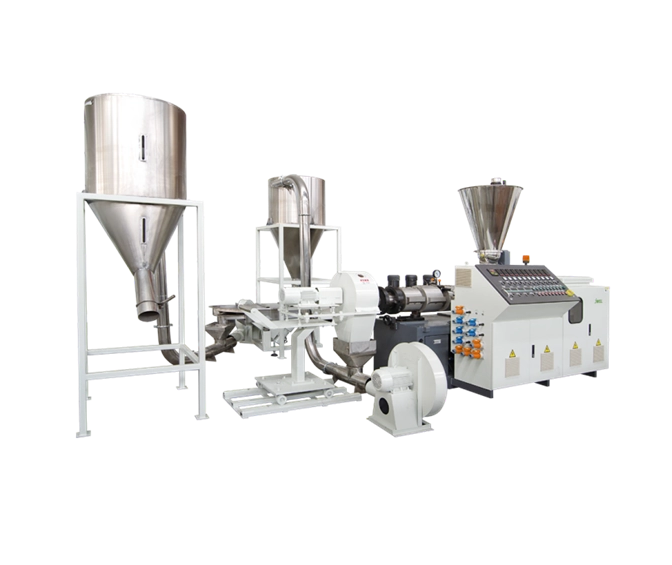

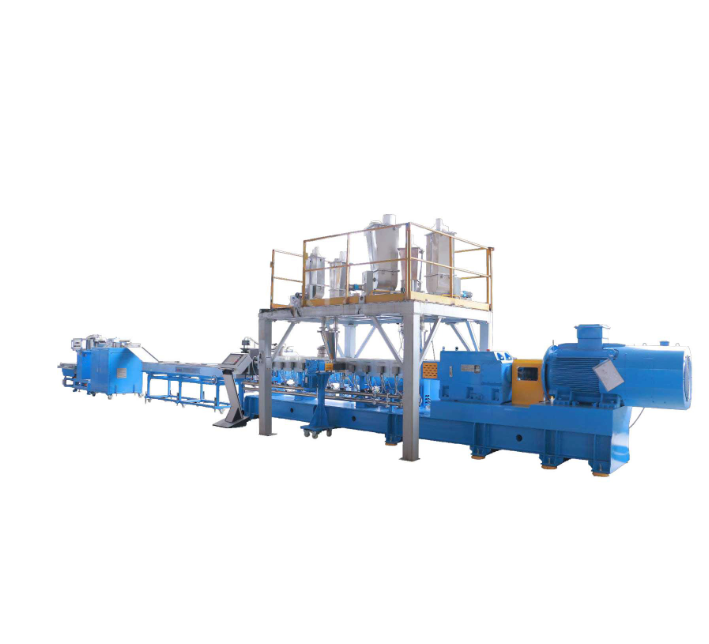

Plastic Shredders in Washing and Pelletizing Lines

A plastic shredder for recycling should never be selected alone.

It must match the downstream equipment.

A typical process may include:

Shredding → Crushing → Washing → Separation → Drying → Pelletizing

For PP and PE recycling, washing lines may process both films and rigid plastics. Published systems also show capacities from several hundred kilograms hourly to several thousand.

The shredder must therefore support line-wide material flow.

Tip：Select the shredder using downstream capacity, not only standalone shredder capacity.

What Technical Specifications Should You Compare Before Buying?

Technical comparison should focus on measurable parameters.

Shredding Capacity and Duty Cycle

Check rated output and operating hours.

Also ask how the capacity was tested.

Soft film may process differently than rigid plastic.

Continuous industrial production also creates higher thermal loads.

Feed Opening and Output Size

The hopper must accept your largest material.

The discharge should meet downstream requirements.

Always request feed-opening dimensions and target particle size.

Motor, Gearbox, Shaft, and Blade Specifications

Important plastic shredder machine specifications include:

Published shredder models show substantial differences across these parameters.

Automation and Safety Features

Useful features may include:

• Automatic reversing

• Overload protection

• Hopper interlocks

• Conveyor control

• Automatic lubrication

• Fault monitoring

Safety interlocks can stop operation when the hopper opens. Some suppliers also offer feeding conveyors and guarding options.

Automation can reduce operator intervention. It does not replace correct machine sizing.

How Do Operating and Maintenance Costs Affect Shredder Selection?

Purchase price represents only one cost.

Operating costs continue throughout machine life.

Energy Consumption vs. Production Capacity

Compare energy demand against useful throughput.

A larger motor may increase power consumption.

However, undersized equipment may run inefficiently.

Use output per operating hour during comparison.

Blade Life and Replacement Cost

Blade wear affects both cost and downtime.

Important factors include:

• Plastic hardness

• Contamination

• Duty cycle

• Cutter material

• Maintenance practices

Supplier guidance confirms blade life varies by these conditions.

Downtime, Jam Protection, and Maintenance Access

Maintenance access has direct economic value.

Easy cutter replacement reduces service time.

Automatic reversal can also help manage overload situations.

Spare-parts availability should be confirmed before ordering.

What Should You Check When Choosing a Plastic Shredder Supplier?

Supplier capability matters after machine selection.

Can the Supplier Test Your Actual Material?

Material testing provides stronger evidence than catalog claims.

Send:

• Material samples

• Clear photos

• Maximum dimensions

• Bulk density

• Target output size

• Required throughput

A supplier quotation form specifically requests processing material, output size, and required capacity.

Can the Machine Be Customized to Your Requirements?

Confirm customization before signing the order.

Important items include:

• Capacity

• Hopper dimensions

• Feeding system

• Voltage

• Output size

• Blade configuration

• Conveyor requirements

Customization should solve a defined process need.

Avoid adding features without operational value.

What After-Sales Support and Spare Parts Are Available?

Ask about:

• Installation

• Commissioning

• Operator training

• Technical support

• Spare blades

• Gearbox parts

• Electrical components

After-sales service affects long-term availability.

Are Specifications, Warranty, and Certifications Clearly Defined?

Technical documents should match the quotation.

Confirm machine model and operating limits.

Also verify warranty terms and included components.

Do not rely only on promotional descriptions.

What Common Plastic Shredder Selection Mistakes Should You Avoid?

Several purchasing mistakes appear repeatedly.

Choosing Based Only on Motor Power

Motor power alone does not define performance.

Torque, cutters, gearbox, feeding, and waste properties also matter.

A properly matched smaller machine may outperform a poorly matched larger one.

Selecting Too Much or Too Little Capacity

Oversizing increases capital cost.

It can also increase unnecessary energy demand.

Undersizing creates production bottlenecks.

Use realistic hourly flow for shredder capacity planning.

Ignoring the Downstream Recycling Process

Shredding is only one process step.

The final particle size must suit washing or granulation.

Feeding must also match downstream equipment capacity.

The best plastic shredder selection guide therefore evaluates the whole recycling line.

Quick Selection Summary

A good purchase starts with material data. It ends with line-level process matching.

Do not select a shredder from motor power alone. Define the waste, capacity, output, and downstream process first.

This approach reduces technical risk. It also creates a stronger basis for supplier comparison.

Conclusion

The right shredder should match your material, capacity, output size, and downstream process.

A proper plastic shredder selection guide helps reduce downtime, energy use, blade wear, and production bottlenecks.

Plastic Pelletizing Machinery & Line | Jwell Pelletizing Systems

JWELL provides plastic pelletizing machinery and recycling solutions for efficient downstream processing.

Its equipment and technical support help buyers build more stable and productive plastic recycling systems.

FAQ

Q: What is a plastic shredder selection guide?

A: A plastic shredder selection guide helps buyers match materials, capacity, output size, and machine design.

Q: How does a plastic shredder selection guide improve machine selection?

A: A plastic shredder selection guide reduces mismatches that may cause jams, blade wear, or low throughput.

Q: How do you choose a plastic shredder?

A: Check material type, input size, required capacity, shaft design, output size, and downstream processing.

Q: Does a plastic shredder selection guide affect equipment cost?

A: A plastic shredder selection guide helps avoid oversizing and unnecessary energy or maintenance expenses.

Q: What is important in plastic shredder capacity selection?

A: Consider hourly waste volume, operating hours, peak feeding rates, and future production growth.

Q: Single shaft vs double shaft shredder: which is better?

A: Single-shaft models offer controlled sizing, while double-shaft shredders suit bulky, high-torque applications.

Q: Why include blade design in a plastic shredder selection guide?

A: A plastic shredder selection guide considers blade wear, cutting performance, replacement needs, and maintenance costs.
