How Can a Post Industrial Plastic Recycling Line Process Consistent Scrap Streams?

Post-industrial plastic waste presents a high-yield recovery opportunity when the material stream is standardized before extrusion. Even within controlled manufacturing environments, scrap streams suffer from bulk density variations, minor cross-contamination, and moisture inconsistencies. Processing these materials with mismatched equipment leads to frequent screen changer blockages, degraded melt flow indices, and unacceptable pellet quality. Achieving continuous throughput requires evaluating the specific mechanical stages of a post industrial plastic recycling line. This guide breaks down the technical evaluation criteria for size reduction, washing, and pelletizing systems to ensure consistent output and verifiable return on investment.

• Input Standardization is Critical: Consistent pellet quality relies on engineered size reduction and homogenization prior to extrusion, mitigating bulk density fluctuations in industrial scrap.
• Washing Dictates Purity: Even "clean" post-industrial scrap often requires a specialized plastic washing line to remove surface oils, dust, and residual manufacturing chemicals that compromise the final polymer structure.
• Pelletizing Systems Must Match the Polymer: Selecting the right plastic pelletizing system (e.g., water-ring vs. strand) is dictated by the specific thermal properties and melt viscosity of the target industrial waste stream.
• Vendor Due Diligence Reduces Risk: Partnering with a proven plastic washing line manufacturer requires evaluating their capacity for custom engineering, material testing facilities, and long-term parts availability.

Defining the Challenge: Variability in Post-Industrial Scrap

Many operators assume post-industrial waste is inherently uniform. Field experience proves otherwise. Shift changes, production line purges, and mixed-batch runs introduce variables that disrupt recycling efficiency. A sudden influx of heavily printed film mixed with rigid offcuts will choke a standard granulator and stall the extruder. Plant managers must assess storage conditions, logistics, and residual contamination before feeding material into the line. Baled scrap stored outside accumulates moisture and dirt, while loose scrap from the factory floor often contains stray hardware.

Categorizing incoming materials into economic streams protects extruder health and maintains throughput. Operators should triage scrap into specific categories:

1. High-Value Target Plastics: Single-polymer, low-contamination scrap like clean production offcuts and edge trims.
2. Medium-Value Missorted Plastics: Salvageable polymers requiring pre-sorting, minor processing adjustments, or blending to achieve a stable bulk density.
3. Negative-Value Waste: Heavily cross-contaminated materials, degraded purges, or non-recyclables that must be diverted to prevent severe line damage and downtime.

Processing consistency relies on strict success criteria. Target throughput must be based on actual operational uptime, factoring in screen changes and blade maintenance, rather than theoretical maximums. Moisture content and contaminant parts-per-million must remain below specific thresholds prior to extrusion to maintain polymer integrity and prevent thermal degradation.

Categorizing Industrial Waste Streams & Material Forms

Rigid plastics, such as injection molding rejects, thick-walled purges, and pipe offcuts, require heavy-duty shredding. The sheer mass of these parts demands high-torque, low-speed rotors to break them down without generating excessive heat or fines. Flexible plastics and packaging waste, including unused packaging films, non-wovens, and edge trims, present a different challenge. These materials lack the bulk density to feed smoothly into an extruder, requiring densification or specialized force-feeding mechanisms like crammer feeders.

Continuous roll scrap requires dedicated handling strategies. Heavy roll scrap cannot be fed directly into a standard shredder. Facilities utilize dedicated unwinding stands or automated guillotine cutters to section the rolls before feeding the line. Mixed-grade streams, such as multi-layer materials or heavily printed industrial films, require technical protocols to manage ink loads and varying melt points without compromising final pellet density.

Core Components of a High-Yield Post Industrial Plastic Recycling Line

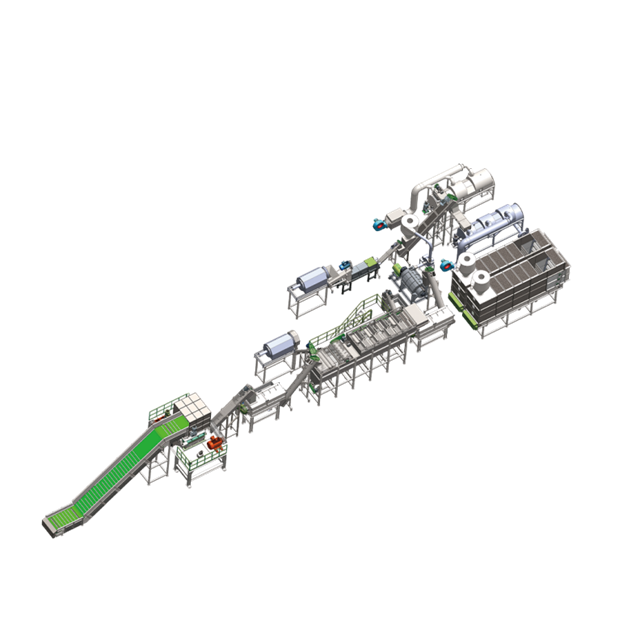

Mapping the logical transition of scrap through the line reveals a chronological processing journey: Intake sorting, Size Reduction, Washing & Decontamination, and finally, Extrusion & Pelletizing. Each stage must be sized and specified to handle the output of the preceding step.

Step 1: Pre-Sorting and Feed Homogenization

Implementing manual triage zones or basic mechanical screens intercepts missorted containers and foreign objects before size reduction. A stray bolt from a forklift can destroy a granulator rotor in seconds. Establishing material-handling buffer silos allows operators to blend different batches of scrap. This homogenization ensures a consistent bulk density feed to downstream equipment, stabilizing the extruder's amp load and preventing surging.

Step 2: Size Reduction (Shredding and Granulation Mechanics)

Evaluating single-shaft versus double-shaft shredders depends on scrap thickness, tensile strength, and volume. Single-shaft shredders with hydraulic pushers excel at processing large, thick purges. Double-shaft shredders handle bulky, flexible materials by pulling them through interlocking blades. Granulators follow the shredder, cutting the material into a uniform flake size. This uniformity directly impacts the efficiency of downstream washing and melting.

Wear resistance dictates maintenance schedules. Assessing rotor design and blade metallurgy is mandatory. Processing abrasive industrial polymers requires D2 tool steel or high-chromium alloys to maintain sharp cutting edges and prevent excessive fines generation.

Step 3: The Role of the Plastic Washing Line in Material Recovery

Post-industrial streams often bypass intensive chemical hot washing, but they still require mechanical cleaning. A specialized plastic washing line utilizes friction washers and sink-float separation tanks to remove floor dirt, label adhesives, and localized oil. Even minor surface contaminants will carbonize in the extruder, ruining the final pellet.

Evaluating mechanical drying versus thermal drying efficiency is necessary to meet the strict moisture tolerances required by high-performance extruders. Centrifugal dryers mechanically strip water from the flake, while thermal dryers remove residual surface moisture. Water filtration and closed-loop circulation systems minimize operational resource consumption and reduce wastewater discharge volumes.

Step 4: Extrusion and the Plastic Pelletizing System

Extrusion requires precise degassing and filtration. Single or double degassing zones vent volatile gases and moisture from printed or high-moisture films. Continuous, double-piston screen changers handle residual impurities without halting production, maintaining steady melt pressure.

Selecting the correct plastic pelletizing system depends on the polymer:

• Strand Pelletizing: Ideal for rigid plastics, compounding, and high-viscosity melts. The polymer is extruded into strands, cooled in a water bath, and cut.
• Water-Ring / Die-Face Pelletizing: Preferred for flexible packaging, PE/PP films, and high-throughput operations. The melt is cut directly at the die face and cooled by a ring of water, producing uniform, spherical pellets.

Cooling and classification finalize the process. Centrifugal dryers and vibrating screens ensure uniform pellet dimensions and eliminate fines before final packaging into supersacks.

Evaluation Dimensions: Matching Equipment to Output Goals

Machine specifications must translate directly to operational profitability. Over-engineering a line wastes capital, while under-engineering leads to chronic downtime.

Throughput Capacity vs. Footprint Constraints

Calculating true floor space requirements involves more than measuring the machines. Facilities must account for maintenance access zones, electrical panels, and material staging areas. Pulling an extruder screw requires significant linear clearance. Operators must balance the efficiency of high-capacity monolithic lines against the flexibility of running multiple smaller, dedicated lines for different polymer types, such as running HDPE and PP on separate, isolated systems to prevent cross-contamination.

Automation and Sensor-Based Sorting Accuracy

Integrating PLC systems provides real-time monitoring of motor loads, temperature zones, and water pressure. Automated feedback loops adjust feed rates to prevent system overloads. Optical or Near-Infrared sorting in post-industrial settings automatically ejects missorted polymers, separating PET from PVC before size reduction, protecting the entire downstream process.

Energy Efficiency and Resource Optimization

Evaluating the kilowatt-per-kilogram energy cost of the entire line reveals long-term operational viability. Direct-drive extruders transfer power more efficiently than belt-driven models, reducing energy consumption. Assessing the water recovery rates of the washing components ensures compliance with local environmental regulations and reduces utility overhead.

Vendor Selection: Assessing a Plastic Washing Line Manufacturer

Moving beyond the initial capital expenditure requires evaluating the long-term operational support provided by the equipment builder.

Engineering Customization and Modular Design

Off-the-shelf systems often fail for specific industrial streams. Working with a plastic washing line manufacturer that offers modular designs allows facilities to upgrade components as waste streams evolve. Pre-purchase material testing is non-negotiable. Sending production scrap samples to the manufacturer’s facility verifies throughput claims, filtration demands, and final pellet quality before signing a purchase order.

After-Sales Support, Parts Supply Chains, and Maintenance

Machine downtime destroys profitability. Evaluating the manufacturer's inventory and lead times for critical wear parts—shredder blades, granulator screens, extruder screw segments, and heating bands—is mandatory. Assessing the availability of remote diagnostic support, IoT-enabled troubleshooting, and domestic field service technicians ensures rapid recovery from mechanical failures.

Implementation Risks and Mitigation Strategies

Deploying heavy machinery involves inherent operational risks. Anticipating these failures allows plant managers to engineer solutions before they impact production.

Conclusion

1. Audit current industrial waste volumes by specific polymer type and contamination level to establish baseline processing requirements.
2. Define exact target pellet specifications, including acceptable melt flow index and moisture content, based on end-user demands.
3. Initiate consultations with equipment manufacturers to schedule pilot testing using your actual facility scrap.
4. Design the plant layout to include adequate maintenance clearances for screw removal and blade changes.

FAQ

Q: What is the difference between post-industrial and post-consumer plastic recycling lines?

A: Post-industrial lines process manufacturing scrap with known polymer compositions and lower contamination levels, requiring high-precision extrusion and MFI control. Post-consumer lines process municipal waste, requiring highly aggressive sorting, heavy washing, and advanced decontamination systems to handle organic waste and mixed plastics.

Q: How do I determine the correct shredder size for my facility?

A: Shredder sizing depends on the physical dimensions of your largest scrap pieces, the tensile strength of the polymer, and your target hourly throughput. Always size the shredder motor and cutting chamber to handle the thickest purges without stalling.

Q: Why is bulk density important in plastic recycling?

A: Bulk density determines how efficiently material feeds into the extruder. Light, fluffy materials like film bridge in the hopper and starve the screw, causing surging. Densifying or force-feeding stabilizes the bulk density for consistent extrusion.

Q: Can I process different polymers on the same recycling line?

A: Yes, but it requires rigorous cleanout procedures between runs to prevent cross-contamination. Purging the extruder, cleaning the screen changer, and vacuuming the granulator are mandatory steps when switching from one polymer to another.

Q: How often should granulator blades be sharpened?

A: Blade sharpening frequency depends on the abrasiveness of the polymer and the volume processed. Inspect blades daily. Dull blades generate excessive heat, create fine dust, and reduce overall throughput. Establish a strict rotational sharpening schedule.
