Equipment Solutions for Rigid Plastic Crushing Washing and Pelletizing

Processing rigid plastics like high-density polyethylene (HDPE), polypropylene (PP), and acrylonitrile butadiene styrene (ABS) presents distinct operational challenges compared to flexible films. These challenges stem from higher bulk density, abrasive contamination profiles, and the demand for precise melt flow consistency in the final output. Facility managers and investors struggle to configure a balanced line where size reduction, washing, and extrusion capacities align. Miscalculations lead to equipment bottlenecks, excessive blade wear, or degraded pellet quality from residual moisture.

Navigating the procurement of a complete system requires moving beyond basic specifications. This guide provides a technical evaluation framework for shortlisting integrated crushing, washing, and pelletizing lines designed specifically for rigid polymers. By understanding the mechanical requirements of each stage, operators can configure a highly efficient plastic recycling machine for rigid plastic that delivers consistent, high-quality output.

• System Synchronization is Critical: Throughput must be calculated backward from the extruder's capacity to ensure the crusher and washing line do not overfeed or starve the system.
• Design from the Die-Face Backward: Best-practice engineering dictates selecting your pelletizing/cutting method first, as this choice dictates the upstream extruder sizing, degassing configuration, and feeding mechanics.
• Contamination Dictates Design: The configuration of the plastic washing line must be tailored to the specific rigid waste stream (e.g., post-consumer bottles vs. industrial injection-molded scrap) to manage abrasive wear and water consumption.
• Operational Expenses Over Capital Cost: Long-term profitability relies on minimizing energy consumption (kW/kg), maximizing blade lifespan in the crushing phase, and reducing downtime during screen changes.
• Vendor Accountability: Partnering with a comprehensive plastic pelletizing machine manufacturer for the entire line reduces integration risks and ensures unified process control.

Defining Success Criteria for Rigid Plastic Recycling

Material Characteristics and Input Profiles

Evaluating the specific polymer types you intend to process is the foundational step in system design. HDPE, PP, PET, and ABS each possess unique bulk densities and melting points. Assessing incoming contamination levels is equally important. Paper labels, strong adhesives, dirt, and metal fragments dictate the pre-sorting mechanisms and equipment protection requirements necessary to maintain continuous operation. You must analyze the waste stream at the source. Industrial scrap behaves differently than post-consumer curbside collection. The latter requires aggressive friction washing and heavy-duty separation.

Understanding bulk density variations helps in sizing the hoppers and feed screws. A system designed for lightweight flakes will choke when fed dense injection-molded purgings. Operators must document the exact mix of materials expected on the tipping floor. This documentation directly influences the motor sizing on the primary shredder and the geometry of the extruder screw.

Infeed & Protection Mechanics

Protecting downstream equipment starts at the infeed stage. Conveyor belts equipped with heavy-duty magnetic separators and industrial metal detectors are mandatory to protect crushing blades from catastrophic damage. Furthermore, evaluating the integration of a force feeder or screw feeder versus traditional gravity hoppers is essential. Dense, rigid flakes often require mechanical assistance to ensure a consistent feed rate into the extruder without bridging.

We recommend a multi-stage protection protocol for the infeed section. Relying on a single overband magnet is insufficient for highly contaminated streams. Implementing a sequence of detection and removal ensures maximum uptime.

1. Install an overband magnetic separator at the primary conveyor incline to catch large ferrous metals.
2. Integrate an eddy current separator if aluminum or non-ferrous metals are present in the waste stream.
3. Place a highly sensitive metal detector tunnel just before the shredder infeed hopper to stop the belt if embedded metals pass the magnets.
4. Utilize a force-feeding silo with an internal agitator to prevent bridging of dense flakes before they enter the extruder throat.

Target Output Quality Metrics

Defining acceptable moisture content limits prior to extrusion is critical. For polyolefins, moisture must typically remain below one percent to prevent foaming and degradation in the extruder. Establishing target Melt Flow Index (MFI) and pellet uniformity standards ensures the final product meets the strict requirements demanded by end-buyers in the injection molding or extrusion sectors.

Moisture acts as a blowing agent inside the extruder barrel. If the drying system fails to hit the target moisture threshold, the resulting pellets will have voids, reducing their structural integrity and bulk density. This directly impacts the market value of the recycled resin. You must size the centrifugal dryers and thermal drying units based on the worst-case scenario of ambient humidity and material porosity.

Throughput and Scalability Requirements

Calculating the required output in kilograms per hour requires a realistic approach. Facility planners must factor in operational shifts, maintenance schedules, and realistic Overall Equipment Effectiveness (OEE) rather than relying solely on theoretical maximum capacities provided on spec sheets. Proper scaling ensures the system operates efficiently without constant start-stop cycles.

A common error in facility design is matching the maximum output of the crusher directly to the maximum intake of the extruder. This leaves zero buffer for maintenance or screen changes. You must build surge capacity into the line. A large buffer silo between the washing line and the extrusion phase allows the front end of the plant to continue running while the extruder undergoes a screen change or minor maintenance.

Core Components of a Waste Plastic Recycling Pelletizing Machine

Stage 1: Size Reduction (Shredding and Crushing)

Choosing the right primary size-reduction tool depends heavily on the input material. Single-shaft shredders are ideal for thick-walled, high-volume scrap like pallets, drums, and thick pipes. High-speed crushers are better suited for thin-walled rigids such as bottles and crates. Rotor and blade geometry play a massive role here. V-shaped or staggered rotor designs are optimal for rigid plastics because they prevent material from bouncing and significantly reduce the generation of fines. The metallurgy of the blades cannot be overlooked. Hardened steel alloys like D2 or SKD-11 are necessary to withstand the abrasive wear inherent in rigid plastic processing. Finally, screen sizing must balance flake size, typically between 10mm and 15mm, to achieve optimal washing efficiency without over-taxing the crusher motor.

When dealing with thick purgings or heavy-duty pipes, a two-stage size reduction process is mandatory. Pushing massive chunks directly into a high-speed granulator will stall the motor and shatter the blades. A low-speed, high-torque shredder must break the material down to 50mm chunks first. These chunks are then fed into the granulator to achieve the final 12mm flake size required for efficient washing and melting.

Stage 2: The Plastic Washing Line Configuration

A well-engineered plastic washing line is the defense mechanism against contamination. Pre-washing and trommel screens remove stones, heavy metals, and loose paper before any chemical or mechanical washing occurs. Friction washers utilize high-speed mechanical agitation to strip stubborn dirt, oil, and paper labels from the rigid flakes. Sink-float separation tanks leverage specific gravity to separate target rigid plastics like polyolefins from heavy contaminants such as metals, PVC, and glass. The drying phase utilizes mechanical centrifugal dryers and thermal drying systems to achieve the strict moisture tolerances required before the material enters the extruder.

Water management within the washing line dictates the operational footprint. Pumping thousands of liters of fresh water per hour is unsustainable. You must integrate a closed-loop water filtration system. This system captures the dirty water from the friction washers, runs it through a dissolved air flotation (DAF) unit to remove suspended solids, and pumps the clean water back to the sink-float tanks. This reduces fresh water intake by up to ninety percent.

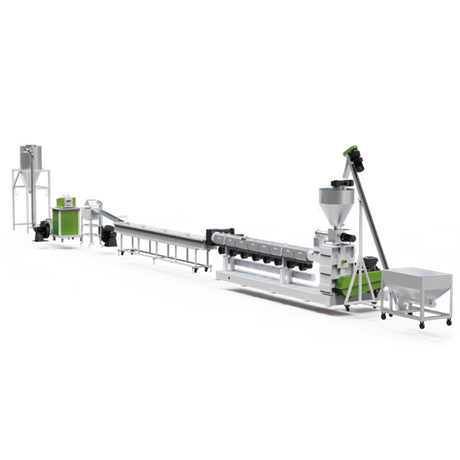

Stage 3: Extrusion and Melt Filtration

Selecting the correct Length-to-Diameter (L/D) ratio for the extruder screw is vital. A ratio between 32:1 and 36:1 ensures proper melting, mixing, and homogenization of rigid flakes without causing polymer degradation. Degassing is another critical component. Double vacuum degassing zones effectively extract volatiles and residual moisture, preventing the formation of porous, weak pellets. Screen changers maintain melt pressure and filter out microscopic contaminants. Continuous dual-piston hydraulic screen changers or backflush systems are preferred to avoid line shutdowns during filtration cycles.

The melt filtration strategy determines the final purity of the pellet. For highly contaminated post-consumer streams, a standard single-plate screen changer will blind within minutes, causing massive pressure spikes. You must utilize a continuous laser filter or a backflush system. These advanced filtration units automatically scrape or flush away contaminants without stopping the melt flow, ensuring the extruder runs continuously for days rather than hours.

Stage 4: Pelletizing and Cooling Technologies

The final stage defines the physical characteristics of the output. Strand pelletizing remains a traditional, cost-effective method for rigid plastics, particularly ideal for materials with high melt strength like PET or Nylon. Water-ring or die-face cutting systems offer space-saving alternatives that provide automated operation and uniform pellet shapes, depending on the specific polymer's melt viscosity. Underwater pelletizing systems represent the premium solution for high-throughput, automated lines processing low-viscosity materials, ensuring perfectly spherical pellets. The cooling and sorting infrastructure, including dewatering screens, cooling troughs, and vibrating sieves, rejects off-spec pellet sizes and prepares the material for packaging.

Selecting the cutting method requires matching the polymer's melt flow index to the die face. High MFI materials like certain injection-grade polypropylenes will drool from a standard strand die, making water-ring or underwater cutting mandatory. Conversely, fractional melt HDPE used for pipe extrusion has high melt strength and handles strand pelletizing perfectly. You must test your specific material on the manufacturer's equipment before finalizing the die design.

Evaluation Dimensions: Comparing Systems and Manufacturers

Integrated Process Control vs. Standalone Units

The operational advantage of centralized PLC systems cannot be overstated. Advanced controllers automatically adjust feed rates across the crusher, washer, and extruder to prevent bottlenecks and ensure a smooth, continuous flow of material. Standalone units require constant manual intervention, increasing labor costs and the likelihood of operator error.

A fully integrated line utilizes amperage feedback loops. If the extruder motor amperage spikes due to dense material, the PLC automatically slows down the force feeder. If the friction washer is overloaded, the infeed conveyor pauses. This level of automation prevents equipment damage and ensures the line runs at maximum safe capacity without human supervision.

Energy Efficiency and Utility Consumption

Benchmarking energy usage by calculating the kilowatts required per kilogram of produced pellets helps determine long-term operational viability. Furthermore, evaluating the washing line's water recirculation and filtration capabilities is crucial to minimize wastewater discharge and reduce municipal water costs. Efficient systems utilize closed-loop water treatment to drastically lower net consumption.

Motor efficiency ratings directly impact the bottom line. Specify IE3 or IE4 premium efficiency motors for all major drives, including the shredder, extruder, and large water pumps. While the initial capital outlay is higher, the reduction in electrical draw pays for the upgrade within the first year of continuous operation. Additionally, insulate the extruder barrel heavily to prevent heat loss, reducing the load on the heater bands.

Vetting a Plastic Pelletizing Machine Manufacturer

Selecting the right partner involves strict criteria. When auditing a plastic pelletizing machine manufacturer, look for in-house machining capabilities and transparency in component sourcing for critical parts like motors, gearboxes, and inverters. The ability to conduct full-scale material trials before shipment is a non-negotiable requirement. Additionally, assess the availability of localized spare parts and robust remote diagnostic support to minimize future downtime.

Do not accept a factory acceptance test (FAT) using clean, virgin material. You must ship a representative sample of your actual contaminated waste stream to the manufacturer's facility. Run the material through the entire proposed line. Measure the throughput, test the moisture content of the flake, and analyze the final pellets for voids and contamination. If the manufacturer refuses a real-world material trial, find another vendor.

Implementation Risks and Mitigation Strategies

Risk: Excessive Blade Wear and Maintenance Downtime

Rigid plastics are inherently abrasive, leading to rapid blade degradation. To mitigate this, specify wear-resistant coatings for crusher housings. Ensure the cutting chamber design allows for rapid blade changes and straightforward gap adjustments, minimizing the time operators spend on routine maintenance.

Implement a strict preventative maintenance schedule for blade sharpening. Running dull blades increases the percentage of fines, generates excessive heat, and spikes the motor amperage. Keep two spare sets of sharpened blades on hand at all times. Train your maintenance crew to swap the entire rotor set in under two hours during scheduled downtime.

Risk: Inconsistent Pellet Quality and Trapped Moisture

Moisture is the enemy of quality extrusion. Over-engineer the drying phase of the washing line to ensure flakes are adequately dried. Ensure the extruder is equipped with a high-capacity vacuum pump and appropriate degassing zones to extract any remaining volatiles before the melt reaches the die face.

Monitor the vacuum pressure continuously. A drop in vacuum pressure indicates a clogged vent port or a failing pump. Operators must clean the vent ports daily to prevent polymer buildup from restricting the extraction of moisture and volatile gases. Install a secondary moisture analyzer inline before the extruder throat to catch wet flakes before they enter the barrel.

Risk: Facility Footprint and Layout Constraints

Large recycling lines require significant floor space. Demand 3D layout planning from the manufacturer during the proposal phase. This ensures safe operator access, adequate forklift clearance, and efficient material flow within your existing building constraints, preventing costly modifications post-delivery.

Consider vertical integration if floor space is limited. Mount the buffer silos and centrifugal dryers on mezzanines above the extruder. This utilizes vertical space and allows gravity to assist in feeding the material, reducing the need for long pneumatic conveying lines. Ensure all elevated platforms have proper safety rails and hoist access for maintenance.

Conclusion

1. Compile a detailed material profile, including bulk density, polymer type, and exact contamination levels, to provide to potential vendors.
2. Request a 3D facility layout from the manufacturer to verify forklift clearances, maintenance access, and material flow before signing a contract.
3. Ship a one-ton sample of your actual waste stream to the vendor for a documented factory acceptance test to validate throughput and pellet quality.
4. Establish a preventative maintenance schedule for blade sharpening and screen changes to ensure maximum uptime upon installation.

FAQ

Q: What is the standard water consumption for a rigid plastic washing line?

A: Standard water consumption varies based on throughput and contamination levels, typically ranging from 2,000 to 5,000 liters per hour for standard lines. However, integrating closed-loop water treatment systems drastically reduces net consumption by filtering and recirculating the water, lowering actual fresh water intake to just a few hundred liters per hour.

Q: How do I choose between strand pelletizing, water-ring, and underwater pelletizing for rigid plastics?

A: Strand pelletizing is best for high melt-strength polymers like PET. Water-ring systems are highly efficient for PP and HDPE, offering automation and significant space savings. Underwater pelletizing is the premier choice for high-volume, automated lines processing various viscosities, ensuring maximum pellet uniformity and preventing melt sticking.

Q: Why is metal detection critical before the crushing stage in a plastic recycling machine for rigid plastic?

A: Tramp metal instantly ruins expensive crusher blades and can destroy downstream extruder screws. Inline magnetic separators and metal detectors identify and remove these hazards before they enter the cutting chamber, easily justifying their cost by preventing catastrophic equipment failure and extended downtime.

Q: What is the average lifespan of crusher blades when processing rigid PP/HDPE?

A: The lifespan of crusher blades depends on the blade material and incoming contamination levels. High-quality D2 or SKD-11 steel blades typically last between 40 to 100 hours of continuous operation before requiring sharpening or replacement when processing abrasive rigid plastics.

Q: Can a waste plastic recycling pelletizing machine handle both rigid plastics and flexible films?

A: While some advanced extruders can handle both by utilizing force feeders or dual feed ports, the upstream crushing, washing, and drying stages require fundamentally different mechanical geometries. You cannot easily swap between rigid and flexible materials without compromising efficiency and output quality.

Q: How does the L/D ratio of an extruder affect rigid plastic recycling?

A: Higher Length-to-Diameter (L/D) ratios, typically between 32:1 and 36:1, provide a longer residence time for the polymer inside the barrel. This extended duration ensures better melting, thorough mixing, and highly effective degassing of rigid flakes, resulting in stronger, defect-free pellets.

Q: What should I look for when auditing a plastic pelletizing machine manufacturer?

A: Prioritize manufacturers who offer comprehensive factory acceptance tests (FAT) using your actual material. Verify the brands of critical components like motors and PLCs. Evaluate their after-sales service infrastructure, parts availability, and request references from existing facilities processing similar rigid plastics.
