How to Choose a High Capacity Plastic Pelletizing Line？

Introduction

Does a larger extruder always mean higher pellet output? Not necessarily, because every production stage affects real capacity. A high capacity plastic pelletizing line combines stable feeding, extrusion, filtration, and automated pelletizing. This guide explains its features, benefits, capacity factors, and selection methods.

What Is a High Capacity Plastic Pelletizing Line?

A high capacity plastic pelletizing line is designed for high-throughput plastic pellet production. It processes prepared plastic through feeding, extrusion, filtration, pelletizing, cooling, and collection. Capacity is usually expressed in kilograms per hour, or kg/h. However, a large extruder alone does not guarantee high output. Every system component must support the required production rate.

Definition of a High Capacity Plastic Pelletizing Line

A high-capacity system is built for stable industrial production. It combines several processing modules into one coordinated line. A typical process follows:

Feeding → Extrusion → Filtration → Degassing → Pelletizing → Cooling → Drying → Collection

The equipment must operate continuously under suitable feedstock conditions. Stable production matters more than short-term peak output. This distinction is important when comparing different suppliers.

What Does “High Capacity” Actually Mean?

There is no universal capacity that defines every high-capacity line. Actual output depends on many factors. These include:

• Polymer type

• Feedstock form

• Bulk density

• Moisture

• Contamination

• Extruder design

• Filtration requirements

• Pelletizing method

For example, loose film behaves differently from dense rigid flakes. The same machine may therefore show different output levels. Buyers should always ask which feedstock was used during capacity testing.

High Capacity vs. High Output vs. High Throughput

These terms are related but slightly different. Capacity describes the production capability of the equipment. Output describes the amount actually produced. Throughput describes how much material passes through the system over time. For B2B buyers, continuous throughput is especially useful. It reflects actual production conditions better than a short peak test.

What Materials Can a High Capacity Line Process?

A suitable industrial plastic pelletizing line can process various thermoplastics. Common materials include:

• PP

• PE

• HDPE

• LDPE

• LLDPE

Feedstocks may include film, woven bags, flakes, regrind, and production scraps. However, the machine configuration must match each material. Low-density film may need compacting before extrusion. Rigid flakes may use screw or force feeding instead.

What Does a High Capacity Pelletizing Line Produce?

The final product is recycled or processed plastic pellets. Stable industrial production should deliver manageable pellet output. The pellets are easier to:

• Store

• Package

• Transport

• Meter

• Blend

• Feed downstream

Pellet consistency also depends on melt stability and cutting performance.

High Capacity Machine vs. Complete Production Line

A large high capacity plastic pelletizing machine is only one part of production. A complete system also needs supporting equipment. The basic route is:

Feeding → Extrusion → Filtration → Cutting → Cooling → Drying → Conveying → Storage

If one stage cannot handle the required output, it becomes a bottleneck. Note: High capacity describes the performance of the complete system, not simply the size of its extruder.

What Determines Plastic Pelletizing Line Capacity?

Actual line capacity depends on several connected variables. Improving only one component may not increase final output.

Feedstock Bulk Density and Feeding Rate

The extruder needs a stable material supply. If feeding is inconsistent, screw utilization falls. Dense flakes generally enter the feeding system more easily. Loose film contains more trapped air. It can therefore require specialized feeding or compacting. A simplified relationship is:

Stable Feeding → Stable Screw Loading → Stable Extrusion → Higher Usable Output

Feedstock preparation is therefore a capacity issue.

Screw Diameter and Extruder Design

The extruder determines much of the processing potential. Important parameters include:

• Screw diameter

• L/D ratio

• Screw geometry

• Screw speed

• Motor capacity

Larger screws can support greater throughput. However, screw diameter alone cannot determine real output. The complete design must match the polymer and feedstock.

Motor Power and Drive System

The motor supplies power for screw rotation. The gearbox transfers this power under processing load. A high-throughput system needs suitable torque and drive stability. However, larger motor power does not automatically create greater capacity. The feeder, screw, filter, and pelletizer must also support the output.

Filtration and Melt Pressure

Filtration can become a major production bottleneck. Contaminated plastic loads the filter more quickly. As filter resistance increases, melt pressure can rise. Frequent manual screen changes may interrupt production. Suitable continuous or automated filtration can reduce these interruptions. The best solution depends on contamination and pellet quality requirements.

Pelletizing and Cooling Capacity

The pelletizing system must handle the full extruder output. Potential downstream bottlenecks include:

• Die capacity

• Pellet cutter

• Cooling system

• Dewatering

• Pellet drying

• Conveying

A powerful extruder provides limited value if downstream equipment cannot keep pace.

Automation and Process Stability

Automation helps coordinate high-throughput production. Useful functions may include:

• Automatic feeding

• Temperature control

• Melt pressure monitoring

• Pelletizer control

• Alarm systems

• PLC control

Automation does not directly create capacity. It helps maintain stable operation closer to designed capacity. Tip: Compare continuous kg/h under defined feedstock conditions instead of maximum short-term output.

How Does a High Capacity Plastic Pelletizing Line Work?

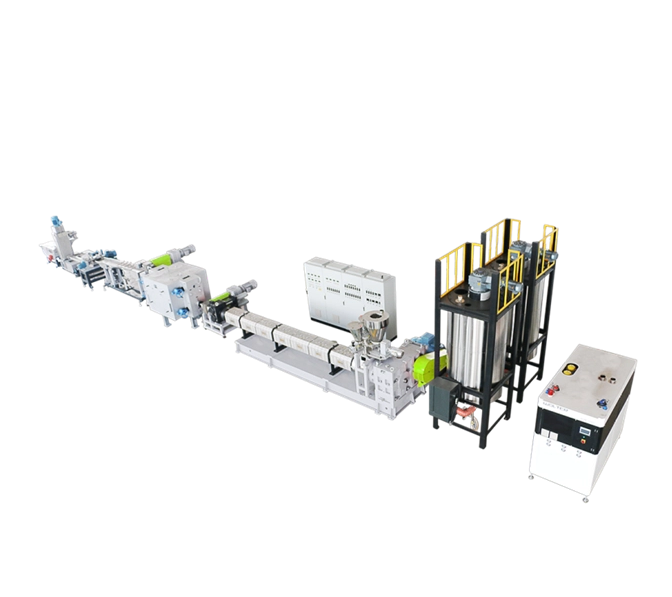

Plastic Pelletizing Machine.png

The operating principle resembles standard pelletizing. The difference lies in sustained material flow and system coordination.

Step 1 – Continuous Feeding

Prepared material enters the feeding section. The feeder should supply material at a controlled rate. Film may use a cutter-compactor system. Rigid flakes can use screw or force feeding. The goal is consistent extruder loading. Overfeeding and underfeeding can both reduce stability.

Step 2 – High-Throughput Extrusion and Plasticizing

The screw moves material through the heated barrel. The main process follows:

Feeding → Conveying → Compression → Melting → Homogenization

Heat and mechanical shear convert plastic into a polymer melt. Screw speed and feeding rate must remain balanced. Increasing screw speed alone may not improve usable output.

Step 3 – Continuous Filtration and Degassing

The polymer melt then reaches filtration. The filter removes many remaining solid contaminants. Degassing may remove moisture and volatile substances. Both processes must support continuous melt flow. Excessive filter blockage can reduce throughput. Poor degassing can also affect processing stability.

Step 4 – High-Speed Pelletizing and Collection

The processed melt exits through the die. A cutting system converts it into pellets. The process continues through:

Cutting → Cooling → Dewatering → Drying → Conveying → Storage

Each downstream unit needs sufficient capacity. Balanced equipment sizing supports continuous production. Tip: Ask suppliers to provide the rated capacity of each major downstream component.

What Are the Key Features of a High Capacity Plastic Pelletizing Line?

High-capacity systems rely on balanced engineering. Several features are especially important.

High-Efficiency Feeding System

The feeder must continuously supply the extruder. Possible configurations include:

• Automatic feeding

• Screw feeding

• Force feeding

• Cutter-compactor feeding

The correct option depends on feedstock form. Low bulk density materials need different handling from rigid regrind.

Large and Stable Extrusion System

The extrusion section should support continuous melt processing. Important features include:

• Suitable screw and barrel

• High-torque drive

• Multiple heating zones

• Temperature control

• Melt pressure monitoring

Stable extrusion is more important than maximum screw speed.

Efficient Filtration and Degassing

High output increases the amount of melt passing through filtration. The filter must therefore handle sufficient flow. Vacuum degassing should also match production requirements. Pressure monitoring helps operators identify increasing filter resistance. These systems influence both pellet quality and effective throughput.

Automated Pelletizing and Material Handling

A high output plastic pelletizing line may integrate several automated functions. Examples include:

• Automatic cutting

• Cooling

• Dewatering

• Drying

• Pneumatic conveying

• Pellet storage

• PLC control

Integrated handling reduces manual intervention during continuous production. Note: High automation cannot compensate for unstable or poorly prepared feedstock.

How Can a Plastic Pelletizing Line Achieve Higher Output?

Increasing output requires finding the real production constraint. The largest machine component is not always the limiting factor.

Improve Feeding Stability

An underfed extruder cannot reach designed capacity. Feedstock should have suitable:

• Particle size

• Bulk density

• Moisture

• Flow behavior

Film may need densification. Rigid flakes may require consistent crushing. Automatic feeding can help maintain controlled material flow.

Optimize Extrusion Parameters

Operators need to coordinate several variables. These include:

• Feeding rate

• Screw speed

• Barrel temperature

• Melt pressure

Changing one parameter affects the others. Simply increasing screw speed may increase shear or melt temperature. Optimization should target stable continuous output.

Reduce Filtration Downtime

Dirty material can increase filter-change frequency. Every shutdown reduces effective production. Appropriate filtration design can help maintain longer operating periods. Upstream washing also influences filtration load. Cleaner feedstock may support more stable production.

Remove Downstream Bottlenecks

Every component has a maximum processing rate. Consider an illustrative example:

Extruder capacity: 800 kg/h

Pelletizing capacity: 600 kg/h

The system cannot sustainably produce 800 kg/h if the cutter only handles 600 kg/h. The downstream section becomes the limiting factor. Tip: Identify the slowest process before investing in a larger extruder.

High Capacity vs. Standard Plastic Pelletizing Line

High-capacity equipment is not necessary for every recycling operation. The correct choice depends on production scale.

Production Capacity

Standard lines can serve moderate production requirements. High-capacity systems target larger continuous volumes. However, capacity should always be defined under actual material conditions.

Equipment Configuration

High-capacity systems often require more supporting equipment.

Energy and Operating Requirements

A larger production line normally consumes more total energy. However, total power does not show production efficiency. B2B buyers should also examine energy use per unit of output. For example:

Specific Energy Consumption = Energy Used ÷ Usable Pellet Output

This provides more context than installed motor power alone.

Which One Should You Choose?

Choosing between a standard and high-capacity line should begin with realistic production needs. Buyers should review the daily production target, operating hours, feedstock availability, labor requirements, energy supply, warehouse capacity, downstream demand, and available investment budget. A larger line may appear attractive, but unused capacity can increase capital cost without creating additional value. Tip: Size the line around realistic annual production instead of maximum theoretical demand.

What Are the Benefits of a High Capacity Plastic Pelletizing Line?

The main advantage of a high capacity plastic pelletizing line is greater industrial processing capability. It allows more material to be processed per hour and can support large recycling operations or manufacturers handling substantial internal plastic waste. However, higher output only creates value when the line can maintain stable and usable production over long operating periods.

Higher Production Throughput

Higher throughput allows recycling plants to process larger material volumes within the same operating period. This can improve production efficiency when sufficient feedstock is continuously available. For large-scale recycling projects, stable hourly output can also help companies meet higher production targets without relying on multiple smaller processing lines.

Supports Continuous Industrial Production

A continuous plastic pelletizing line is designed for longer production runs and more stable operation. Automation can reduce repeated manual handling, while coordinated feeding, extrusion, filtration, pelletizing, and material handling help maintain consistent output. For industrial plants, this operational stability can be just as important as maximum peak capacity because frequent interruptions reduce effective production.

Reduces Unit Processing Costs at Suitable Scale

Higher throughput can improve equipment utilization and reduce labor requirements per unit of finished pellets. When the production scale is suitable, manufacturers may achieve greater output per operating hour, lower manual handling, better use of installed equipment, and lower labor input per ton. However, actual cost savings depend on energy prices, labor costs, feedstock conditions, machine utilization, and maintenance requirements. These benefits should therefore be verified through real production data rather than nominal machine specifications alone.

Supports Large-Scale Plastic Recycling

High-throughput systems are suitable for recycling plants, plastic processors, manufacturing facilities, industrial scrap recovery operations, and post-consumer recycling projects. They can help companies manage larger material volumes and maintain continuous pellet production. However, the system must still match the specific waste stream, contamination level, and downstream demand. Note: Higher capacity creates value only when feedstock supply and pellet demand can support it.

How to Choose a High Capacity Plastic Pelletizing Line

Equipment selection should begin with actual production requirements rather than machine size alone. Buyers need to evaluate the required capacity, feedstock characteristics, real operating throughput, energy consumption, automation level, and supplier support before making an investment decision.

Define Your Required Capacity in kg/h

Start from the annual production target and convert it into a realistic hourly requirement. A simple calculation is:

Annual Output ÷ Operating Days ÷ Operating Hours = Required Average kg/h

This figure should then be adjusted for maintenance downtime, cleaning, screen changes, material changes, and real equipment utilization. These operating losses affect the actual production capacity available during the year. A realistic capacity target helps prevent both undersizing and unnecessary investment in excessive equipment capacity.

Define Your Feedstock

Suppliers need accurate material information before they can estimate realistic throughput. Buyers should clearly identify the polymer type, whether the feedstock is film or rigid material, bulk density, moisture level, contamination, flake size, printing, and additives. These characteristics influence feeding behavior, extrusion stability, filtration requirements, and pelletizing pe

Conclusion

A high capacity plastic pelletizing line delivers stable throughput through coordinated feeding, extrusion, filtration, and pellet handling. Real capacity depends on the entire system. JWELL provides configurable high-output plastic recycling and pelletizing solutions. Its equipment supports continuous production, efficient material processing, and technical service for industrial recycling projects.

FAQ

Q: What is a high capacity plastic pelletizing line?

A: A high capacity plastic pelletizing line processes large plastic volumes through feeding, extrusion, filtration, pelletizing, cooling, and collection.

Q: How does a high capacity plastic pelletizing line increase output?

A: It improves output through stable feeding, efficient extrusion, filtration, automation, and balanced downstream equipment.

Q: What affects plastic pelletizing line capacity?

A: Feedstock type, moisture, screw design, filtration, and pelletizing performance affect actual capacity.

Q: Is a high capacity plastic pelletizing line more expensive?

A: Yes. Cost depends on capacity, automation, equipment configuration, and customization.

Q: Why can pelletizing output become unstable?

A: Unstable feeding,
