What Is a Plastic Extruder Pelletizing Machine?

Introduction

How does plastic waste become consistent recycled pellets? The key process happens inside the extruder.

A plastic extruder pelletizing machine melts, plasticizes, filters, and extrudes prepared thermoplastics.

This guide explains its process, components, screw design, pelletizing methods, and equipment selection.

What Is a Plastic Extruder Pelletizing Machine?

A plastic extruder pelletizing machine is extrusion-based equipment used to produce plastic pellets.

It processes prepared thermoplastic materials through controlled heating and mechanical shear. The screw moves the material through the barrel while it gradually melts.

The resulting polymer melt then passes through filtration and extrusion stages. A pelletizing system cuts the extruded polymer into manageable pellets.

The basic process is:

Plastic Feedstock → Feeding → Extrusion → Filtration → Die → Cutting → Cooling → Pellets

Definition of a Plastic Extruder Pelletizing Machine

A plastic pellet extruder combines melt processing and pellet production.

Its main functions can include:

• Feeding the prepared plastic

• Conveying material through the barrel

• Melting and plasticizing the polymer

• Homogenizing the polymer melt

• Removing contaminants through filtration

• Removing moisture or volatiles through degassing

• Extruding the melt through a die

• Preparing the melt for pellet cutting

The exact configuration varies by material and application.

What Does the Extruder Do During Pelletizing?

The extruder prepares the polymer before pellet formation.

Plastic enters through the feeding section. A rotating screw moves it through the heated barrel.

Heat and mechanical shear soften the material. Compression helps convert it into a continuous melt.

The screw also helps mix and homogenize the polymer.

After melt preparation, the material reaches the die. The pelletizer then performs the cutting process.

In simple terms:

Extruder = prepares the melt

Pelletizer = forms the pellets

Both systems must operate together for stable production.

What Materials Can a Plastic Pellet Extruder Process?

A suitable plastic pellet extruder can process many thermoplastics.

Common materials include:

• PP

• PE

• HDPE

• LDPE

• LLDPE

• ABS

• PS

Machine design must match the selected polymer.

Each material has different melting and processing behavior. Temperature settings also vary between polymers.

Moisture, additives, fillers, and contamination can further affect extrusion.

What Feedstock Forms Can Enter the Extruder?

Plastic extrusion pelletizing systems can handle different prepared materials.

Examples include:

• Plastic film

• Bags

• Flakes

• Regrind

• Crushed rigid plastics

• Production scraps

However, one feeding system does not suit every feedstock.

Loose film has low bulk density. It may require a cutter-compactor or specialized feeder.

Rigid flakes usually have higher bulk density. Screw or force feeding may work more effectively.

What Does a Plastic Extruder Pelletizing Machine Produce?

The final product is recycled or compounded plastic pellets.

Pellets offer a more standardized physical form than loose waste or irregular regrind.

They are generally easier to:

• Package

• Transport

• Store

• Meter

• Blend

• Feed downstream

Pelletizing does not automatically restore virgin polymer properties.

Final performance still depends on the original material and processing history.

Plastic Extruder vs. Plastic Pelletizer

These terms describe different functions.

Commercial machines often integrate these functions into one production system.

This explains why equipment may be described as a plastic extrusion pelletizing machine.

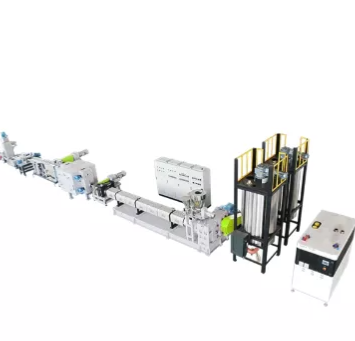

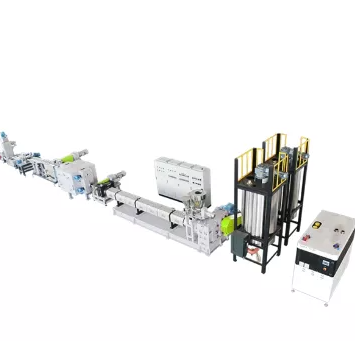

Pelletizing Machine vs. Complete Pelletizing Line

A pelletizing extruder is the central processing unit.

A complete production line includes supporting equipment.

A typical configuration is:

Feeding → Extrusion → Filtration → Pelletizing → Cooling → Drying → Collection

Upstream washing and crushing may also be required for contaminated waste.

Note: Buyers should confirm whether a quotation covers only the extruder or the complete pelletizing line.

How Does a Plastic Extruder Pelletizing Machine Work?

Extrusion converts prepared plastic into a controlled polymer melt.

Several processing stages occur before pellet cutting begins.

Step 1 – Feeding Plastic Into the Extruder

Plastic first enters the feeding system.

Common options include:

• Hopper feeding

• Screw feeding

• Force feeding

• Compactor feeding

The correct design depends on material form and bulk density.

Stable feeding helps maintain consistent screw loading.

Unstable feeding can cause output and pressure fluctuations.

Step 2 – Conveying, Heating, and Melting

The screw rotates inside the barrel.

It transports plastic from the feeding zone toward the die.

Barrel heaters supply controlled thermal energy. Screw rotation also creates mechanical shear.

Together, these forces soften and melt the polymer.

Heaters alone do not determine melting performance.

Screw geometry and operating conditions are also important.

Step 3 – Plasticizing and Homogenizing the Melt

Melting alone is not enough.

The extruder must create a reasonably uniform polymer melt.

Several variables affect this process:

• Screw geometry

• Screw speed

• Temperature

• Residence time

• Material consistency

Stable plasticization supports more consistent extrusion.

Poor control may cause incomplete melting or unstable output.

Step 4 – Filtration and Degassing

Recycled plastics can contain contaminants and moisture.

A melt filter captures many remaining solid impurities.

Screen changers allow filter screens to be replaced during operation.

Vacuum degassing may remove moisture and volatile substances.

Melt pressure monitoring can indicate increasing filter resistance.

These functions become especially important for variable recycled feedstock.

Step 5 – Extrusion and Pellet Cutting

The conditioned melt reaches the extrusion die.

It exits through designed die openings.

The material then enters the selected pelletizing system.

Common options include:

• Strand pelletizing

• Water-ring pelletizing

• Die-face pelletizing

Pellets are cooled and dried before collection.

Tip: Ask suppliers how feeding, melt temperature, pressure, and filtration remain stable during continuous production.

What Are the Main Parts of a Plastic Extruder Pelletizing Machine?

Machine performance depends on several coordinated components.

The extruder screw and barrel are especially important.

Feeding System

The feeding section delivers material into the extruder.

It may contain:

• Material hopper

• Screw feeder

• Force feeder

• Cutter-compactor

Feed design should match the physical form of the plastic.

A machine processing loose film needs different feeding behavior from one processing rigid regrind.

Screw and Barrel

The screw rotates inside the barrel.

It performs several important functions during extrusion.

A simplified screw can include:

Feed Zone → Compression Zone → Metering Zone

The feed zone receives and transports material.

The compression zone helps melt and compact the polymer.

The metering zone delivers a more consistent melt toward the die.

Actual screw geometry can be more complex.

It should be designed around polymer and processing requirements.

Drive, Heating, and Temperature Control

The drive system provides screw rotation.

Major components can include:

• Main motor

• Gearbox

• Barrel heaters

• Cooling units

• Temperature sensors

• Control system

Stable temperature control is essential.

Too little heat can cause poor plasticization.

Excessive temperature may increase polymer degradation.

Filtration, Die, and Pelletizing System

After plasticization, the melt moves toward filtration.

This section may include:

• Melt filter

• Screen changer

• Vacuum vent

• Melt pressure sensor

• Extrusion die

• Pellet cutter

• Cooling equipment

• Pellet dryer

Each component affects continuous production.

Tip: Compare the complete melt-processing system instead of judging machines only by motor power.

How Do Screw and Barrel Design Affect Pelletizing?

Screw and barrel design strongly influence extrusion performance.

This is why two extruders with similar motor power may perform differently.

Screw Diameter and Production Capacity

Screw diameter affects the physical scale of the extrusion system.

Larger diameters can support greater material throughput.

However, diameter does not determine capacity alone.

Actual output also depends on:

• Polymer type

• Feedstock density

• Screw geometry

• Screw speed

• Motor capacity

• Filtration resistance

Capacity should therefore be verified using actual feedstock.

What Is the L/D Ratio?

L/D means screw length divided by screw diameter.

For example:

L/D = Screw Length ÷ Screw Diameter

This ratio helps describe screw geometry.

It can influence residence time, melting, mixing, and plasticization.

A larger L/D is not automatically better.

The correct design depends on material and processing objectives.

Why Does Screw Speed Matter?

Screw speed affects material movement through the barrel.

It can influence:

• Throughput

• Shear

• Mixing

• Residence time

• Melt temperature

Higher speed may increase output under suitable conditions.

However, excessive speed can create unwanted shear or unstable processing.

Maximum speed is therefore not always the best operating speed.

Why Is Temperature Control Important?

Every polymer has suitable processing conditions.

If the temperature is too low:

Poor melting → Unstable extrusion → Inconsistent pellets

If the temperature becomes excessive:

Excessive heating → Possible degradation → Reduced material quality

Operators should control temperature across individual barrel zones.

Note: Screw design, screw speed, and temperature should be evaluated as one processing system.

Single-Screw vs. Twin-Screw Pelletizing Extruder

Extruder configuration should match the processing objective.

Single-screw and twin-screw machines serve different needs.

What Is a Single-Screw Pelletizing Extruder?

A single-screw extruder contains one rotating screw.

Its structure is relatively straightforward.

It is commonly used for suitable thermoplastic extrusion and recycling applications.

It can provide stable conveying and plasticization for consistent feedstocks.

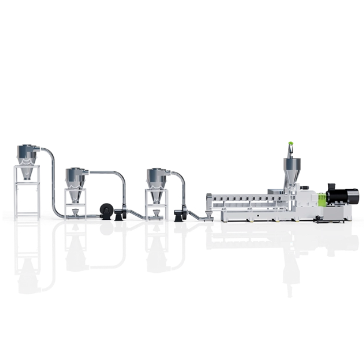

What Is a Twin-Screw Pelletizing Extruder?

A twin-screw extruder contains two screws inside one barrel.

The screws may provide stronger mixing and material distribution.

Twin-screw equipment is widely associated with demanding mixing and compounding applications.

Actual performance depends on screw configuration.

Single-Screw vs. Twin-Screw Extruder

The correct choice depends on processing requirements.

Twin-Screw vs. Two-Stage Extrusion

These terms should not be confused.

Twin-screw extrusion uses two screws inside one barrel.

Two-stage extrusion uses two sequential extrusion stages.

A two-stage system may use different extruder configurations.

They describe different machine architectures.

Tip: Ask suppliers for a process-flow diagram when equipment terminology is unclear.

What Pelletizing Methods Can Be Used After Extrusion?

The extruder creates the polymer melt.

The pelletizing section determines how that melt becomes pellets.

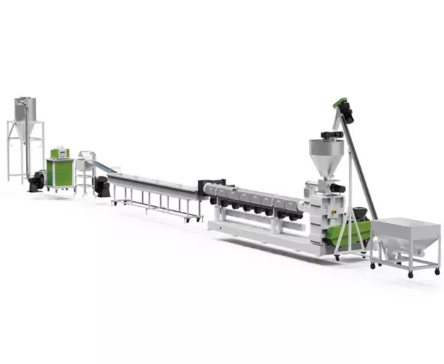

Strand Pelletizing

The process follows:

Die → Strands → Water Cooling → Cutting → Pellets

Polymer exits the die as continuous strands.

The strands cool before entering the cutter.

This method has a straightforward operating principle.

Water-Ring Pelletizing

Water-ring systems cut polymer near the die face.

Rotating blades create pellets after extrusion.

Water cools and transports the pellets.

Dewatering and drying follow the cutting stage.

Die-Face and Underwater Pelletizing

Other systems cut material directly near the die.

Underwater systems perform cutting inside a controlled water environment.

These configurations can suit specific materials and capacities.

They are not automatically suitable for every application.

How to Choose a Pelletizing Method

Consider:

• Polymer type

• Melt behavior

• Production capacity

• Pellet requirements

• Automation

• Maintenance

• Operating stability

The extruder and cutter should function as one coordinated system.

What Are the Benefits of a Plastic Extruder Pelletizing Machine?

A pelletizing extruder provides more than particle-size reduction.

It transforms prepared plastic through controlled melt processing.

Converts Plastic Waste Into Reusable Pellets

Prepared thermoplastic waste can become secondary manufacturing feedstock.

This supports mechanical recycling.

A typical route is:

Waste Plastic → Preparation → Extrusion → Pelletizing → Recycled Pellets

The pellets can then enter suitable downstream processes.

Improves Melt Consistency

Controlled extrusion helps create a more homogeneous melt.

The screw supports mixing and plasticization.

This can improve processing consistency before pellet cutting.

However, extrusion cannot reverse all polymer degradation.

Supports Filtration and Degassing

Recycled feedstock can contain moisture and residual impurities.

Filtration removes many solid contaminants.

Degassing can remove moisture and volatile substances.

These functions help prepare the melt for stable pellet production.

Supports Continuous and Automated Production

Modern pelletizing systems can integrate:

• Automatic feeding

• Temperature control

• Pressure monitoring

• Automated cutting

• Cooling

• Pellet conveying

The actual automation level depends on machine configuration.

Note: Automation improves process control, but consistent feedstock preparation remains essential.

How to Choose a Plastic Extruder Pelletizing Machine

Machine selection should begin with the material.

Do not start only from motor size or advertised capacity.

Start With the Polymer and Feedstock

Define the actual material before requesting quotations.

Important information includes:

• Polymer type

• Film or rigid material

• Flake size

• Regrind size

• Bulk density

• Moisture

• Contamination

• Additives

• Required pellet quality

This information helps suppliers configure the machine correctly.

Compare Screw and Barrel Specifications

Important specifications include:

• Screw diameter

• L/D ratio

• Screw geometry

• Barrel material

• Screw speed

• Motor power

• Heating zones

Do not evaluate these specifications separately.

They work together during extrusion.

Check Filtration, Degassing, and Pelletizing

Ask suppliers about:

• Filter design

• Screen changer

• Vacuum system

• Melt pressure monitoring

• Pelletizing method

• Cooling

• Pellet drying

Contaminated recycled feedstock may require stronger filtration capability.

Verify Real Production Capacity

Capacity is usually expressed in kg/h.

However, advertised capacity needs context.

Ask suppliers:

• Which polymer was tested?

• What feedstock form was used?

• What was its moisture level?

• How clean was the material?

• Was production measured continuously?

A machine processing clean regrind may perform differently from one processing lightweight film.

Tip: Request capacity guarantees under clearly defined feedstock conditions.

What Should You Check Before Buying a Pelletizing Extruder?

Technical specifications provide only part of the answer.

A real material trial can reveal practical performance.

Request a Material Trial

Provide representative production material.

Evaluate:

• Feeding stability

• Plasticization

• Melt pressure

• Throughput

• Pellet consistency

• Continuous operation

The sample should represent normal waste quality.

Check Energy and Maintenance Requirements

Review major operating components.

These include:

• Motor

• Gearbox

• Screw

• Barrel

• Heaters

• Filter screens

• Cutting blades

Also inspect maintenance access and spare-part requirements.

Evaluate Pellet Quality

Do not judge pellets only by appearance.

Consider:

• Pellet size consistency

• Moisture

• Remaining contamination

• Melt behavior

• Downstream processability

The required tests depend on the final application.

Compare Supplier Support

B2B buyers should also evaluate service capability.

Consider:

• Installation

• Commissioning

• Operator training

• Spare parts

• Remote support

• Technical service

• Equipment customization

Tip: Use your own material for a continuous trial before final machine selection.

Conclusion

A plastic extruder pelletizing machine converts prepared plastics into reusable pellets through controlled extrusion. Screw design, filtration, temperature, and pelletizing methods all influence performance.

JWELL provides configurable plastic extrusion and recycling solutions. Its equipment supports stable processing, efficient pellet production, and technical service for different recycling applications.

FAQ

Q: What is a plastic extruder pelletizing machine?

A: A plastic extruder pelletizing machine melts, plasticizes, filters, and extrudes thermoplastics before producing pellets.

Q: How does a plastic extruder pelletizing machine work?

A: A plastic extruder pelletizing machine uses screw conveying, heating, filtration, extrusion, cooling, and pellet cutting.

Q: What plastics can a pelletizing extruder process?

A: A plastic pellet extruder can process suitable PP, PE, HDPE, LDPE, ABS, PS, and other thermoplastics.

Q: What affects plastic extruder output?

A: Screw design, feedstock density, screw speed, filtration, temperature, and polymer type influence pelletizing extruder output.

Q: Single-screw or twin-screw pelletizing extruder?

A: Single-screw systems suit many recycling tasks, while twin-screw pelletizing extruders offer stronger mixing for suitable applications.

Q: How do I choose a plastic pelletizing extruder?

A: Compare feedstock, capacity, screw design, filtration, pelletizing method, energy use, maintenance, and supplier support.
