What Is A Plastic Pelletizing Line？

Introduction

How does plastic waste become reusable pellets? A plastic pelletizing line makes this transformation possible.

It melts, filters, cuts, and cools prepared plastic into uniform pellets. In this guide, you will learn how it works, its main components, common types, and how to choose the right system.

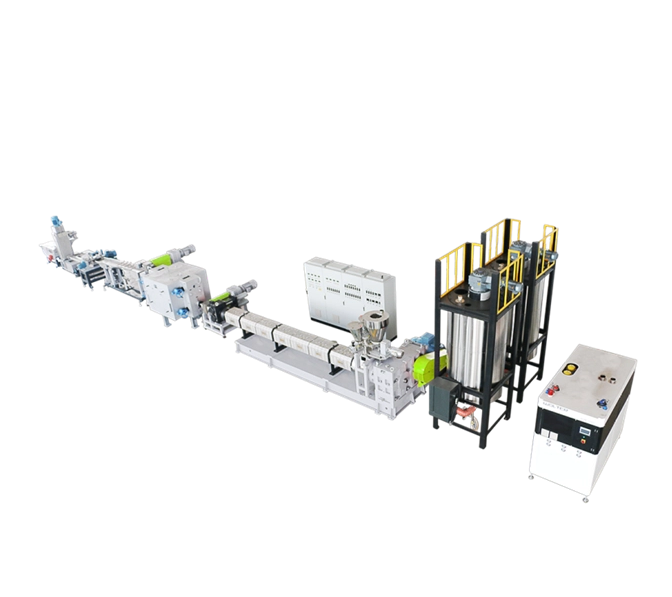

What Is a Plastic Pelletizing Line?

A plastic pelletizing line is an extrusion-based production system. It converts thermoplastic materials into relatively uniform plastic pellets.

The input can include virgin polymers or recycled plastics. It can also process formulated compounds containing fillers, pigments, or additives.

The exact configuration changes according to the feedstock and final pellet requirements.

Definition of a Plastic Pelletizing Line

A typical plastic pelletizing system starts by feeding prepared material into an extruder. The screw moves the material through heated barrel zones.

The material melts and becomes more homogeneous during this stage. Filtration can remove solid contaminants from recycled material. Degassing can remove moisture and volatile substances when required.

The melt then passes through a die. A pelletizing unit converts it into small pellets. Cooling and drying systems prepare the pellets for storage or downstream processing.

A plastic pelletizing machine may describe one major machine. A complete line normally includes several coordinated machines.

For example, a line may contain:

• Material feeding equipment

• Compactor or force feeder

• Screw extruder

• Melt filtration system

• Vacuum degassing system

• Extrusion die

• Pellet cutting system

• Cooling and drying equipment

• Conveying and storage equipment

• Electrical and PLC controls

This integrated design distinguishes a production line from an individual granulator.

What Does a Plastic Pelletizing Line Produce?

The final product is plastic pellets or granules.

Good pellets should have reasonably consistent dimensions and composition. Their exact shape depends on the chosen pelletizing technology.

Common products include:

Pellet specifications depend on downstream manufacturing requirements. There is no single pellet specification suitable for every application.

What Raw Materials Can Be Pelletized?

A properly configured line can process many thermoplastic materials.

Common examples include:

• PP

• HDPE

• LDPE

• LLDPE

• PS

• ABS

• PA

• PC

• PET

• PVC compounds

It may process film, bags, flakes, rigid regrind, or granules. Compounding systems can also process formulations containing CaCO₃, talc, pigments, or other additives.

However, one machine should not be assumed to process every material equally well.

Polymer viscosity, moisture, contamination, thermal sensitivity, and bulk density all influence machine configuration.

Plastic Recycling Pelletizing vs. Plastic Compounding

Recycling pelletizing and compounding have different objectives.

A plastic recycling pelletizing line primarily converts recovered plastics into reusable pellets. The process often emphasizes stable feeding, filtration, degassing, and contamination management.

Compounding has another purpose. It combines polymers and other ingredients to create a controlled formulation.

These ingredients may include:

• Mineral fillers

• Pigments

• Stabilizers

• Processing aids

• Flame retardants

• Reinforcing materials

Twin-screw extrusion is commonly associated with demanding compounding applications because it offers strong mixing and dispersion.

Why Is Pelletizing Necessary?

Irregular plastic waste is difficult to feed consistently. Films, flakes, powders, and scraps can have very different bulk densities.

Pelletizing creates a more manageable intermediate material.

It can provide several practical benefits:

• More stable downstream feeding

• Easier handling and storage

• Better material uniformity

• Controlled melt filtration

• Removal of certain volatile components

• Easier transport and packaging

• More predictable downstream processing

For recyclers, pelletizing can also transform prepared waste into a marketable secondary raw material.

Where Are Plastic Pellets Used?

Pellets can enter many conventional plastics processes.

Typical downstream applications include:

• Injection molding

• Blow molding

• Film extrusion

• Pipe extrusion

• Profile extrusion

• Sheet extrusion

• Cable extrusion

• Other thermoplastic processing

The final application determines the required pellet quality.

Tip: B2B buyers should define their input material and final pellet application before comparing pelletizing machines.

How Does a Plastic Pelletizing Line Work?

The plastic pelletizing process follows several connected stages.

A simplified process is:

Material preparation → Feeding → Melting → Mixing → Filtration → Degassing → Extrusion → Cutting → Cooling → Drying → Collection

Each stage influences final pellet stability.

Step 1 – Feeding and Material Preparation

Prepared plastic enters the feeding system first.

Rigid flakes can often flow through a conventional hopper. Lightweight films are much harder to feed consistently.

Film recycling lines may therefore use compactors or force feeders. They increase material density and stabilize feeding.

Consistent feeding is important because unstable input can affect extruder output.

Step 2 – Melting, Plasticizing, and Mixing

The screw rotates inside a temperature-controlled barrel.

It transports the material forward while heat and shear soften it. The polymer gradually becomes a continuous melt.

Screw geometry affects:

• Conveying

• Compression

• Melting

• Mixing

• Residence time

Temperature settings must match the processed polymer. Excessive temperatures can cause degradation. Insufficient heating can create unstable plasticization.

Step 3 – Degassing and Melt Filtration

Recycled plastics may contain moisture, inks, residues, or other impurities.

A filtration system captures solid contaminants before pellet formation. Screen changers allow operators to replace filter media when necessary.

Degassing serves another function. Vacuum vents can remove moisture and certain volatile substances from the melt.

These systems become especially important when recycled feedstock quality varies.

Step 4 – Extrusion and Pellet Cutting

The homogeneous melt exits through a die.

The cutting method depends on the selected plastic pelletizing system. Some systems create continuous strands before cutting. Others cut the polymer directly at the die face.

Stable melt pressure and temperature support consistent pellet formation.

Step 5 – Cooling, Drying, and Pellet Collection

Fresh pellets remain hot after cutting.

They must be cooled before storage or packaging. Water or air can perform this function.

Wet systems also require effective dewatering and drying. Finished pellets then move toward a silo or storage bin.

Note: A stable pelletizing process depends on the whole line, not only the extruder.

What Are the Main Components of a Plastic Pelletizing Line?

A complete line combines several machines into one controlled process.

Feeding and Compaction System

The feeding system supplies material to the extruder.

Possible configurations include:

• Hopper feeders

• Screw feeders

• Force feeders

• Compactors

Material form determines the appropriate design.

Loose PP or PE film has low bulk density. It may bridge inside a conventional hopper. A compactor can densify this material before extrusion.

Rigid regrind behaves differently. It often requires a simpler feeding arrangement.

Plastic Extruder, Screw, and Barrel

The extruder is the central processing unit.

Its screw transports and plasticizes the polymer. The barrel contains controlled heating zones.

Important technical variables include:

• Screw diameter

• L/D ratio

• Screw speed

• Motor power

• Heating capacity

• Temperature zones

• Screw geometry

These parameters influence throughput and plasticization performance.

Melt Filtration and Degassing System

Filtration is particularly important for recycled materials.

A screen changer removes solid contamination from the polymer melt. Different designs offer different filtration areas and screen-changing methods.

Degassing removes unwanted gases from the melt.

The required level depends on moisture, printing inks, contamination, and material history.

Pelletizing, Cooling, and Control Equipment

The downstream section converts the filtered melt into finished pellets.

It may include:

• Pellet cutter

• Cooling tank

• Water-ring system

• Dewatering unit

• Centrifugal dryer

• Blower

• Conveying pipe

• Storage silo

• PLC control system

Automation helps synchronize these units.

Tip: Compare complete equipment configurations rather than only motor power or nominal kg/h output.

What Types of Plastic Pelletizing Systems Are Available?

Different pellet cutting technologies suit different polymers and production goals.

Strand Pelletizing

Strand pelletizing uses a straightforward process.

Molten polymer passes through a die and forms continuous strands. The strands cool before entering a pellet cutter.

This technology is widely understood and relatively easy to operate.

However, stable strand formation remains important. Broken strands can interrupt production.

Water-Ring Pelletizing

Water-ring systems cut the polymer near the die face.

Rotating blades form pellets while water cools and transports them. A dewatering unit separates the pellets afterward.

The compact layout can be useful for many recycling applications.

Underwater Pelletizing

Underwater systems cut pellets inside a water chamber.

Water immediately cools the newly formed pellets. The process can support stable pellet formation at higher production levels.

However, the equipment is generally more sophisticated.

Hot-Cut and Air-Cooling Pelletizing

Some materials use hot-cut systems followed by air cooling.

This approach avoids a conventional water bath. It can be useful when material behavior or processing requirements make water cooling undesirable.

The correct cutting technology depends on polymer characteristics and pellet requirements.

Single-Screw vs. Twin-Screw Plastic Pelletizing Lines

Screw configuration is one of the most important equipment decisions.

When Is a Single-Screw Pelletizing Line Used?

Single-screw extruders provide straightforward polymer conveying and melting.

They are commonly considered for many recycling applications, especially relatively homogeneous thermoplastics.

Typical applications include PP and PE recycling.

Their simpler mechanical structure can also reduce operating complexity.

When Is a Twin-Screw Pelletizing Line Used?

Twin-screw extruders provide stronger mixing capabilities.

They are widely used when the process requires controlled blending and dispersion.

Typical applications include:

• Color masterbatch

• Filler masterbatch

• Polymer modification

• CaCO₃-filled compounds

• Talc-filled compounds

• Additive blending

• Engineering plastic compounds

Commercial twin-screw systems are offered for materials including PA, HDPE, LDPE, LLDPE, PE and PP, as well as calcium carbonate, talc and masterbatch formulations.

How Do Their Processing Capabilities Differ?

Neither configuration is universally better.

The correct choice depends on the processing objective.

Tip: Choose the screw system according to material behavior, not simply machine price.

What Plastics Can a Plastic Pelletizing Line Process?

Material compatibility depends on the equipment configuration.

PP and PE Recycling

PP and PE are common pelletizing materials.

Typical feedstock includes:

• Packaging films

• Shopping bags

• Woven bags

• Agricultural film

• HDPE containers

• LDPE film

• LLDPE film

• Rigid PP scraps

Commercial granulation systems are specifically marketed for waste PE films and PP products, using extrusion and cutting to convert recovered materials into pellets.

Film materials often require forced feeding or compaction because their bulk density is low.

PVC and Other Specialized Materials

PVC requires more careful thermal management.

Its processing window makes temperature control particularly important. Screw design and residence time also require careful consideration.

The complete configuration should therefore match the specific PVC formulation.

Engineering Plastics

Engineering plastics can also be pelletized.

Examples include:

• ABS

• PA

• PC

• PS

• PET

Some materials require drying before extrusion. Others require specialized screw elements or stronger degassing.

Material characteristics should always guide the equipment specification.

Filler and Masterbatch Materials

Compounding lines can process polymers containing fillers and additives.

Typical materials include CaCO₃, talc, pigments, and functional additives.

These applications require good dispersion and controlled feeding. Twin-screw extrusion is often selected for this reason.

Note: A supplier's broad material list does not guarantee identical performance across every polymer.

What Are the Benefits of Using a Plastic Pelletizing Line?

Pelletizing creates value by converting prepared plastic into a standardized manufacturing feedstock.

Converting Plastic Waste Into Reusable Raw Material

Suitable plastic waste can be reprocessed instead of being discarded.

The line melts, filters, and reforms the material into pellets. These pellets may then re-enter suitable manufacturing processes.

This makes pelletizing an important stage in mechanical plastic recycling.

Improving Pellet Consistency and Processability

Consistent pellets are easier to meter than irregular scraps.

Controlled extrusion also improves material homogenization. Filtration removes many solid contaminants from the melt.

This creates more stable feedstock for downstream machines.

Increasing Production Efficiency Through Automation

Modern production lines can integrate automatic control across multiple stages.

Automation may cover:

• Material feeding

• Barrel temperature

• Screw speed

• Melt pressure

• Pellet cutting

• Cooling

• Conveying

This reduces manual intervention and supports stable production.

Supporting Closed-Loop Plastic Manufacturing

Manufacturers can sometimes recycle suitable internal production scrap.

The scrap returns to processing after proper preparation and pelletizing.

This can reduce material losses and support closed-loop production.

However, recycled content must still meet final product requirements.

How to Choose the Right Plastic Pelletizing Line

Machine selection should begin with the material, not the machine catalog.

Start With Your Plastic Material

First identify the feedstock clearly.

Ask:

• Which polymer will be processed?

• Is it film, flakes, powder, or rigid scrap?

• Is the material washed?

• What is its moisture level?

• How much contamination remains?

• Does it contain fillers?

• Is it printed or laminated?

These details influence almost every major equipment decision.

Determine the Required Production Capacity

Capacity is usually expressed in kilograms per hour.

Larger machines do not automatically provide better economics.

A suitable line should match:

• Available feedstock

• Working hours

• Required annual output

• Downstream demand

• Storage capacity

• Utility supply

For reference, one commercial recycling line lists configurations of 150 and 300 kg/h. Such figures are equipment-specific and should not be treated as universal output standard

Conclusion

A plastic pelletizing line turns plastic materials into uniform, reusable pellets. The right system depends on feedstock, capacity, screw design, and pelletizing method.

JWELL – Plastic Recycling Machine & Shredder & Extrusion Line

JWELL provides plastic recycling and pelletizing solutions for different processing needs. Its integrated equipment helps manufacturers improve material handling, production stability, and recycling efficiency while creating greater value from plastic resources.

FAQ

Q: What is a plastic pelletizing line?

A: A plastic pelletizing line converts prepared plastic into uniform pellets for recycling or manufacturing.

Q: How does a plastic pelletizing line work?

A: A plastic pelletizing line uses feeding, extrusion, filtration, cutting, cooling, and drying.

Q: Why use a plastic pelletizing line?

A: A plastic pelletizing line improves material consistency, handling, recycling efficiency, and downstream processing.

Q: How much does a plastic pelletizing line cost?

A: Plastic pelletizing line prices depend on capacity, screw design, automation, filtration, and pelletizing method.

Q: Single-screw or twin-screw pelletizing line?

A: Single-screw systems suit general recycling, while twin-screw systems offer stronger mixing for compounding.

Q: Why are plastic pellets uneven?

A: Uneven pellets may result from unstable feeding, melt temperature, pressure, cooling, or cutter settings.
